SELECT A DIAGRAM

Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Cabinet And Breaker Trim Parts
02 - Cabinet And Breaker Trim Parts

Diagram for 03 - Top Grille And Unit Cover Parts
03 - Top Grille And Unit Cover Parts

Diagram for 04 - Refrigerator Liner Parts
04 - Refrigerator Liner Parts

Diagram for 05 - Freezer Liner Parts
05 - Freezer Liner Parts

Diagram for 06 - Shelf Parts
06 - Shelf Parts

Diagram for 07 - Refrigerator Door Parts
07 - Refrigerator Door Parts

Diagram for 08 - Freezer Door And Basket Parts
08 - Freezer Door And Basket Parts

Diagram for 09 - Upper Unit Parts
09 - Upper Unit Parts

Diagram for 10 - Lower Unit And Tube Parts
10 - Lower Unit And Tube Parts

Diagram for 11 - Icemaker Parts
11 - Icemaker Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP2317080S Top Grille Assembly   (Replaces: 2317080S) Special Order $ 432.71

2 W10161693 Cover, Unit Appelez-nous -
3 2256466 Back Panel Special Order $ 327.22

4 W10185625 Front, Unit Cover Special Order $ 262.53

5 WP489069 Screw, 8-18 X 3/8   (Replaces: 1157158) In-Stock Immediately $ 8.40

6 2003347 Tee Bolt Special Order $ 14.99

7 WP488130 Nut   (Replaces: 1161548) Special Order $ 7.32


    View Diagram in Separate Window     Print Icon   Print Part List

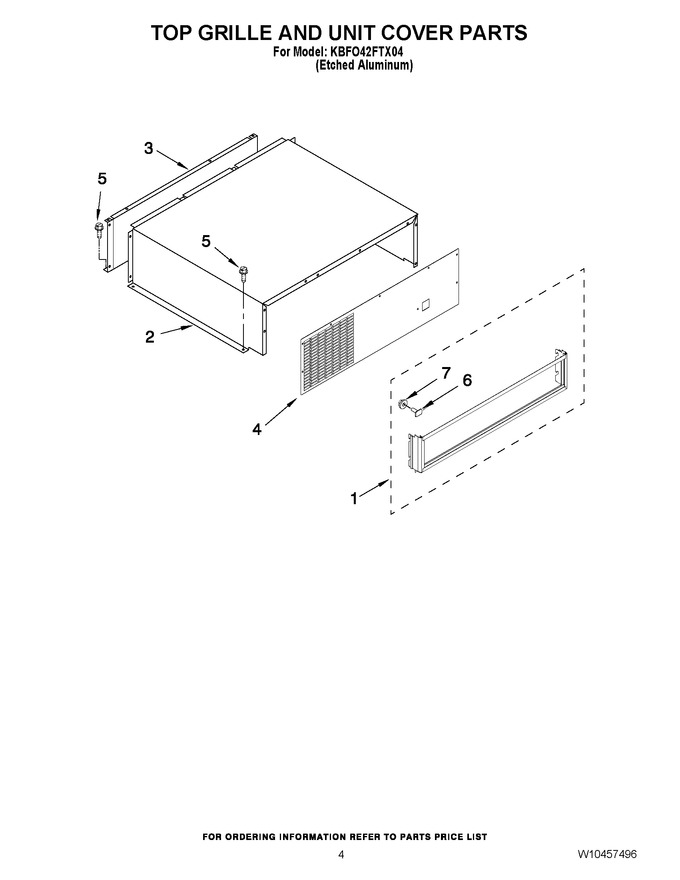

Diagram for KBFO42FTX04
