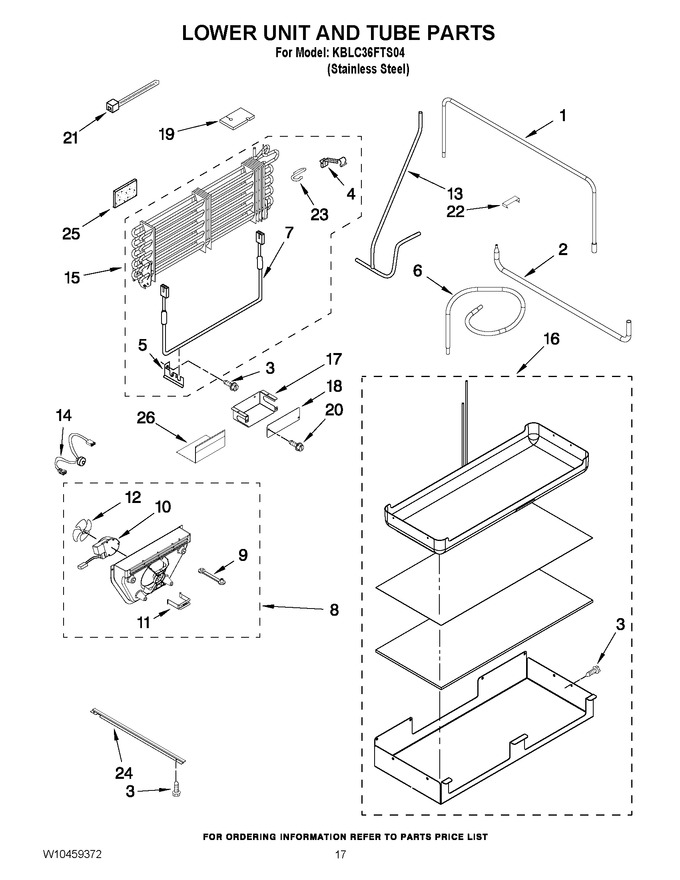

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309072		Tube, Transition (condenser)		Appelez-nous	-
2	W10388653		Tube, Transition (drier/restrictor)			Immediately	$ 36.43
3	W11624204		Screw 8-15 X .530   (Replaces: 486194)				$ 13.25
4	2307944		Clip, Evaporator Heater		Appelez-nous	-
5	2307945		Bracket, Mounting		Appelez-nous	-
6	W10306442		Tube, Suction		Appelez-nous	-
7	WP2268393		Heater, Defrost   (Replaces: 2268393)				$ 151.37
8	2306178		Scroll Assembly		Appelez-nous	-
9	W11669856		Grommet, Motor   (Replaces: W10449920)			Immediately	$ 14.34
10	2259385		Motor, Fan				$ 84.74
11	8201663		Retainer, Fan Motor   (Replaces: 2223733)				$ 143.34
12	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 39.07
13	W10404239		Tube, Discharge		Appelez-nous	-
14	W10139165		Defrost Bi-metal				$ 85.95
15	WPW10195923		Evaporator Assy   (Replaces: W10195923)			Immediately	$ 351.14
16	W11623101		Drain Pan   (Replaces: W10281063)			Immediately	$ 354.62
17	W10316077		Cover-wiring, Btm		Appelez-nous	-
18	W11756952		Cover-box, Wire   (Replaces: W10321048)		Appelez-nous	-
19	2306180		Block, Evaporator		Appelez-nous	-
20	WP489069		Screw 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 7.56
21	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 7.47
22	W10169509		Clip, Heater		Appelez-nous	-
23	2317920		Clip, Defrost Heater		Appelez-nous	-
24	2320554		Bracket, Drain Pan		Appelez-nous	-
25	W11553819		Insulation, Sound   (Replaces: 2169104)			Immediately	$ 13.29
26	W10321050		Shield-wiring, Cvr		Appelez-nous	-
