SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts

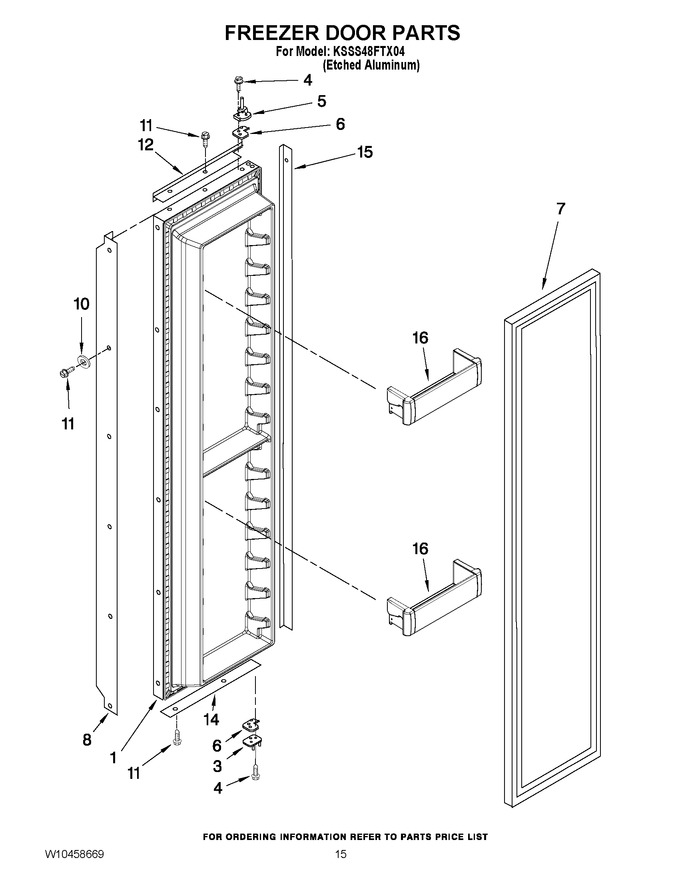

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193487		Freezer Door (includes No.7)		Appelez-nous	-
3	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
5	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
6	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 130.37
7	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 369.84
8	2316844S		Handle, Door				$ 225.63
10	2001230		Washer				$ 12.34
11	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
12	2005027		Trim-door, Top		Appelez-nous	-
14	2215986S		Trim-door, Bottom		Appelez-nous	-
15	2005964		Trim-door, Side		Appelez-nous	-
16	W11590561		Bin, Door   (Replaces: W10323603)				$ 94.23

    View Diagram in Separate Window       Print Part List
