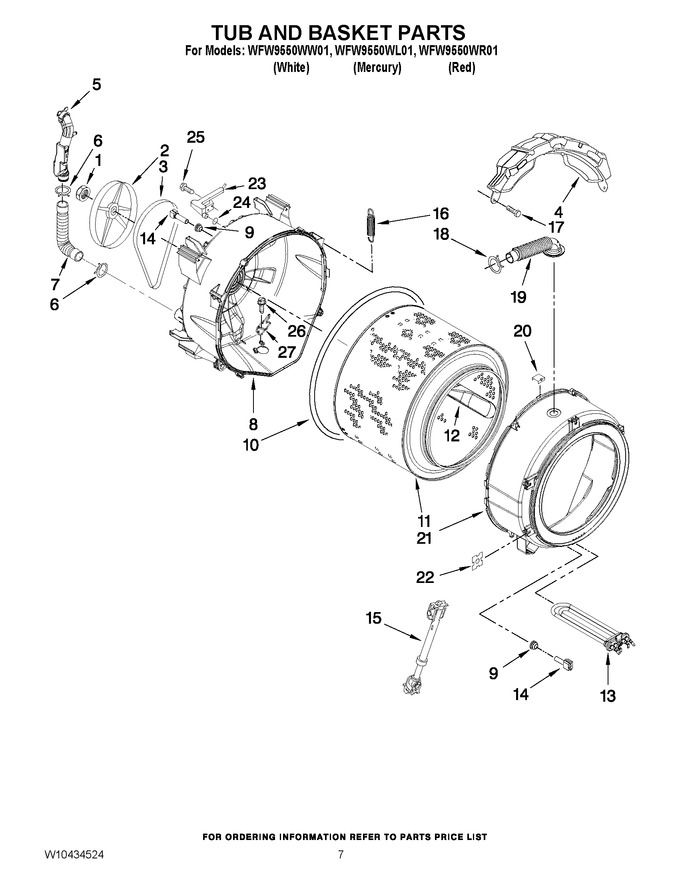

05 - Tub And Basket Parts


06 - Pump And Motor Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10283361		Nut, Pulley   (Replaces: 8533999)			Immediately	$ 79.11
2	WP8182650		Pulley   (Replaces: W10003730)			Immediately	$ 187.69
3	WPW10388414		Belt, Drive   (Replaces: W10116915)			Immediately	$ 53.86
4	W10163424		Counterweight, Front				$ 74.63
5	W10249838		Pipe, Ventilation				$ 104.82
6	8540010		Clamp, Vent Hose				$ 11.18
7	WP8181743		Hose, Exhaust   (Replaces: W10004330)				$ 108.37
8	W10399436		Tub, Rear (includes Items 10, 22, 26 & 27)		Appelez-nous	-
9	W11590578		Seal, Ntc   (Replaces: 8540766)			Immediately	$ 7.97
10	WPW10036350		Gasket, Tub   (Replaces: W10036350)				$ 92.02
11	WPW10159904		Basket, Complete   (Replaces: W10159904)				$ 945.86
12	WPW10110114		Baffle, Tub   (Replaces: W10110114)				$ 108.02
13	WPW10249844		Heater-steamer   (Replaces: W10249844)				$ 314.43
14	WPW10467289		Ntc   (Replaces: 8540226)			Immediately	$ 47.80
15	W10822553		Shock Absorber   (Replaces: W10015830)			Immediately	$ 83.35
16	W10243909		Spring, Suspension (set Of 2)   (Replaces: W10207549)				$ 125.40
17	W11685857		Bolt, Counterweight Mtg.   (Replaces: W10094780)				$ 14.10
18	3363365		Clamp, Hose				$ 10.75
19	WP8540015		Hose, Exhaust   (Replaces: 8540015)			Immediately	$ 41.85
20	WP8540092		Clamp, Tub   (Replaces: 8540092)				$ 7.59
21	W10259785		Tub, Front (includes Items 10 & 22)		Appelez-nous	-
22	WP8182512		Nut, Push-in   (Replaces: 8540072)			Immediately	$ 6.95
23	W10003600		Air Trap		Appelez-nous	-
24	WPW10250553		O-ring, Air Trap   (Replaces: W10250553)				$ 7.19
25	W11230114		Screw   (Replaces: 8540513)				$ 13.28
26	W11230114		Screw   (Replaces: 8540880)				$ 13.28
27	W10250558		Bracket, Heater Support				$ 12.41
