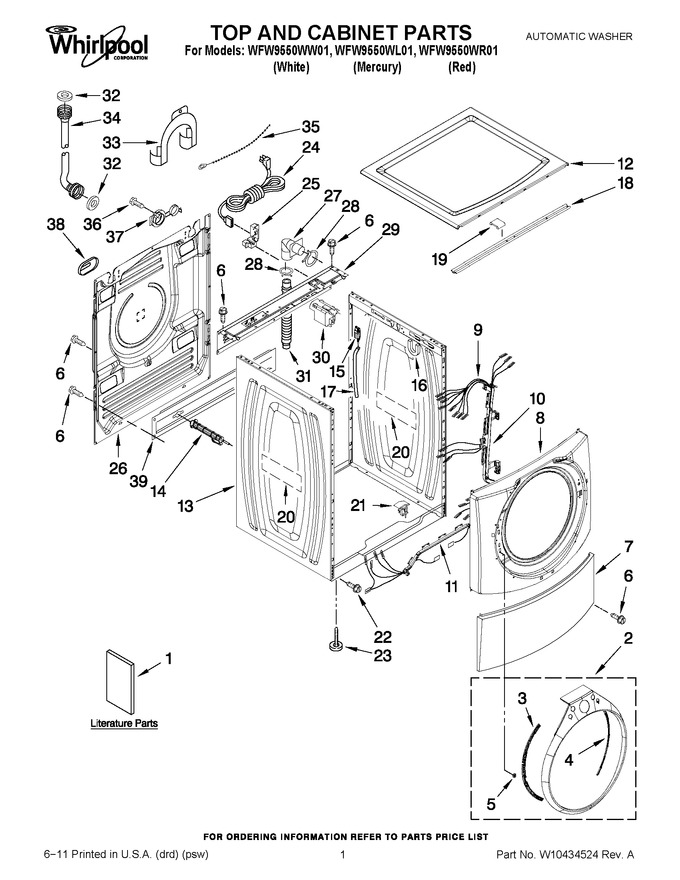

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10251899 | Use & Care Guide |
|
- | |||||
| 1 | W10217131 | Tech Sheet |
|
- | |||||
| 1 | W10423523 | Energy Guide |
|
- | |||||
| 2 | W10268528 | Trim Ring, Teardrop Assembly (white) |
|
- | |||||
| 2 | W10221434 | Trim Ring, Teardrop Assembly (red) |
|
- | |||||
| 2 | W10252096 | Trim Ring, Teardrop Assembly (mercury) |
|
- | |||||
| 3 | W10015770 | Bracket, Trim Fixation (left) |
|
- | |||||
| 4 | W10015780 | Bracket, Trim Fixation (right) |
|
- | |||||
| 5 | WP8183210 | Clip, Trim (Replaces: W10029650) |
|
$ 6.95 | |||||
| 6 | WP489442 | Screw, 8-18 X 5/8 (Replaces: W10015090) |
|
Immediately | $ 10.94 | ||||
| 7 | W10252795 | Toe Panel (mercury) |
|
$ 87.40 | |||||
| 7 | W10245126 | Toe Panel (red) |
|
$ 129.63 | |||||
| 7 | W10003640 | Toe Panel (white) |
|
- | |||||
| 8 | W10252793 | Panel, Front (mercury) |
|
- | |||||
| 8 | W10252788 | Panel, Front (red) |
|
- | |||||
| 8 | W10015580 | Panel, Front (white) |
|
- | |||||
| 9 | W10115662 | Harness, Wiring (lower Main) (includes Items 10 & 11) |
|
- | |||||
| 10 | W10216383 | Channel, Harness (side) |
|
$ 135.03 | |||||
| 11 | W10168549 | Channel, Harness (bottom) |
|
$ 132.09 | |||||
| 12 | W10252796 | Top (mercury) |
|
- | |||||
| 12 | W10003900 | Top (white) |
|
- | |||||
| 12 | W10252789 | Top (red) |
|
- | |||||
| 13 | W10252865 | Cabinet (red) |
|
$ 290.13 | |||||
| 13 | W10171708 | Cabinet (white) |
|
- | |||||
| 13 | W10252826 | Cabinet (mercury) |
|
$ 305.50 | |||||
| 14 | W10190007 | Bolt, Shipping (lower) |
|
- | |||||
| 14 | W10289554A | Bolt, Shipping (upper) (Replaces: W10190006) |
|
$ 64.96 | |||||
| 15 | WPW10249845 | Switch, Analog Pressure Sensor (Replaces: W10249845) |
|
Immediately | $ 260.16 | ||||
| 16 | WP8181763 | Bracket, Spring (Replaces: W10008890) |
|
$ 79.99 | |||||
| 17 | WPW10004260 | Hose, Pressure Switch (Replaces: W10004260) |
|
Immediately | $ 7.00 | ||||
| 18 | WP8540720 | Brace, Top (includes Item 19) (Replaces: 8540720) |
|
$ 81.75 | |||||
| 19 | WP8283273 | Damper, Brace (Replaces: 8283273) |
|
$ 27.05 | |||||
| 20 | W10400364 | Absorber, Sound |
|
- | |||||
| 21 | WPW10085220 | Microswitch (Replaces: 8540210) |
|
$ 33.25 | |||||
| 22 | 8540479 | Screw, Gounding |
|
$ 8.78 | |||||
| 23 | W10862938 | Foot, Leveling (Replaces: W10064810) |
|
Immediately | $ 12.59 | ||||
| 24 | WP8183009 | Cord, Power (Replaces: W10205498) |
|
$ 147.66 | |||||
| 25 | 8182635 | Strain Relief, Power Cord (Replaces: W10110676) |
|
$ 16.72 | |||||
| 26 | W10165713 | Panel, Rear Hose Holder |
|
- | |||||
| 27 | W11757170 | Connector, Drain Hose (Replaces: W10003260) |
|
Immediately | $ 6.39 | ||||
| 28 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 29 | W10110677 | Brace, Rear |
|
$ 33.11 | |||||
| 30 | WPW10367632 | Filter, Interference (Replaces: W10339736) |
|
$ 122.22 | |||||
| 31 | WP8181737 | Hose, Drain (outer) (Replaces: W10281257) |
|
Immediately | $ 62.50 | ||||
| 32 | WP16123 | Washer, Water Inlet Hose (Replaces: 3976300) |
|
$ 7.70 | |||||
| 33 | WPW10280024 | U-bend, Drain Hose (Replaces: 8540021) |
|
$ 79.53 | |||||
| 34 | WP89503 | Hose, Water Inlet (hot Water) (Replaces: 8571378) |
|
Immediately | $ 24.09 | ||||
| 34 | WP89503 | Hose, Water Inlet (cold Water) (Replaces: W10194208) |
|
Immediately | $ 24.09 | ||||
| 35 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 7.90 | |||||
| 36 | 8182201 | Screw, 3 X 8 Mm (Replaces: 8540727) |
|
$ 13.41 | |||||
| 37 | W11116978 | Sleeve, Cord Support (Replaces: 8540728) |
|
$ 22.80 | |||||
| 38 | WP8540268 | Cover, Transport (Replaces: 8540268) |
|
$ 6.95 | |||||
| 39 | WPW10003040 | Brace, Transport (lower) (Replaces: W10003040) |
|
$ 96.77 | |||||
| 39 | W10165710 | Brace, Transport (upper) |
|
- |
