01 - Top And Cabinet Parts


02 - Door And Latch Parts

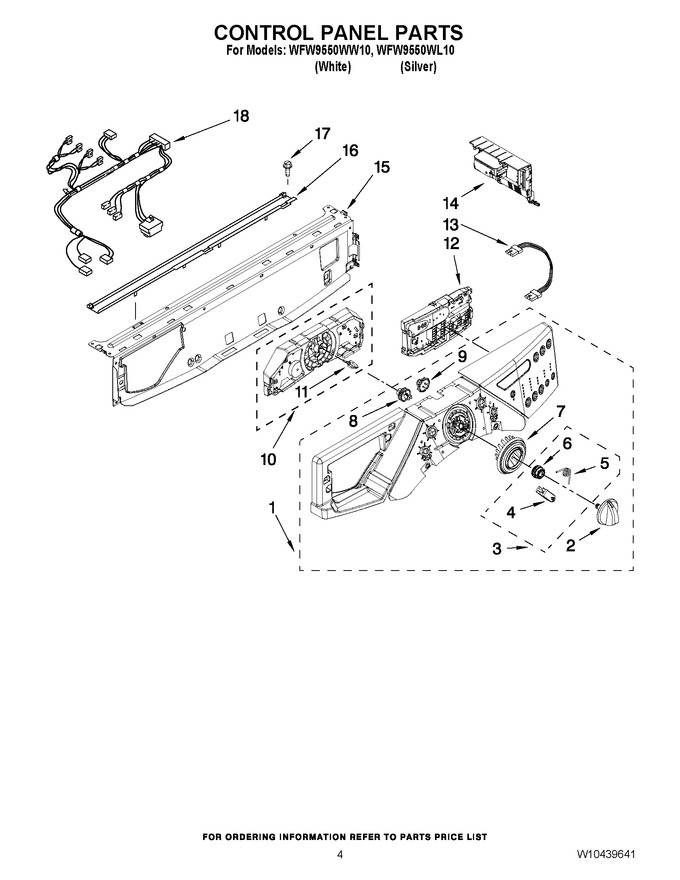

03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10421345		Panel, Control (silver)		Appelez-nous	-
1	W10418955		Panel, Control (white)		Appelez-nous	-
2	W10190685		Knob, Control (includes Item 9)				$ 68.80
3	W10133927		Wheel, Detent Kit (includes Item 9)				$ 145.30
4	W10131661		Wheel, Rast (service In Kit Only)		Appelez-nous	-
5	W10131377		Spring, Knob (service In Kit Only)		Appelez-nous	-
6	W10131378		Wheel, Detent (service In Kit Only)		Appelez-nous	-
7	W10131376		Ring, Knob Light (includes Item 9)		Appelez-nous	-
8	W10131381		Wheel, Encoder				$ 84.58
9	W10131382		Retainer, Snap		Appelez-nous	-
10	W10283460		User Interface, Center				$ 212.61
11	8183177		Adapter, Encoder Wheel		Appelez-nous	-
12	W10428011		User Interface, Right				$ 230.91
13	W10852624		Harness, Wiring (user Interface)   (Replaces: W10283465)				$ 179.53
14	W10424936		Microcomputer, Machine Control				$ 322.93
15	W10059240		Brace, Front Top   (Replaces: 8183203)				$ 204.59
16	WP8183204		Channel, Water   (Replaces: 8183204)				$ 171.96
17	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 8.28
18	W10411671		Harness, Wiring (upper Main)		Appelez-nous	-
