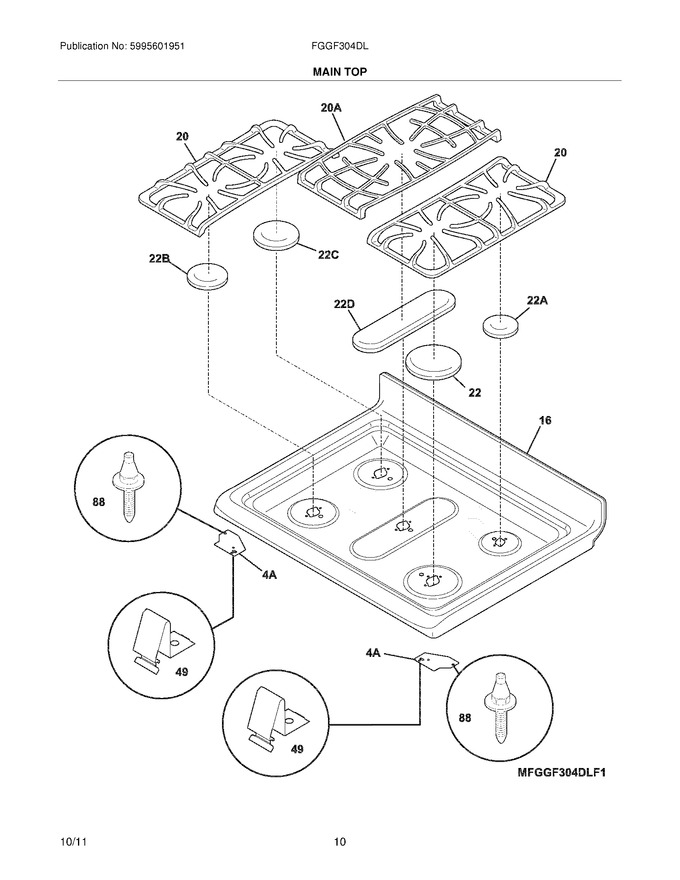

09 - Main Top


11 - Doors


12 - Wiring Diagram


13 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318287574		Cook Top Assy,black		Appelez-nous	-
20	316499806		Grate,black ,(2)   (Replaces: 316499502)				$ 393.51
22	5304508468		Cap,burner ,17k ,black   (Replaces: 316262104)				$ 54.94
49	316260000		Clip,maintop Mtg ,(2)				$ 8.19
88	316099500		Pin,guide ,(2)				$ 7.25
20A	316499806		Grate,center ,black   (Replaces: 316551802)				$ 393.51
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 38.93
22B	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 40.61
22C	5304508443		Cap,14k Burner ,black   (Replaces: 316262004)			Immediately	$ 51.12
22D	316559604		Cap,9.5k Burner ,black ,oval				$ 80.33
4A	318593200		Bracket,chassis ,front ,(2)		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 16.54
