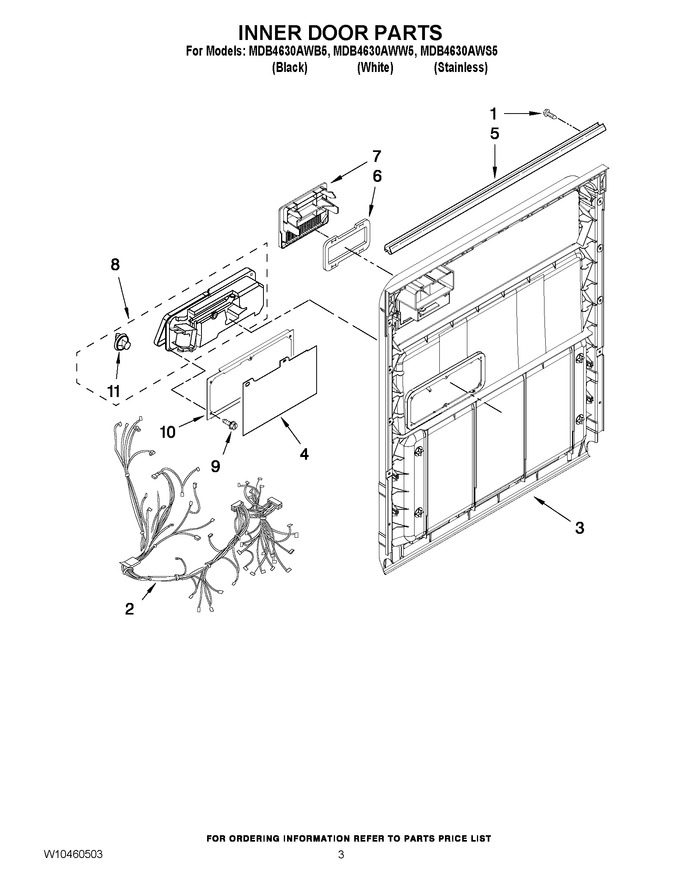

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348413 | Screw, Door (Replaces: W10348413) |
|
Immediately | $ 8.41 | ||||
| 2 | WPW10416609 | Harness, Main (Replaces: W10416609) |
|
$ 228.86 | |||||
| 3 | WPW10254547 | Inner Door Mastic Assembly (Replaces: W10254547) |
|
$ 275.73 | |||||
| 4 | W10385977 | Shield, Dispenser |
|
$ 30.61 | |||||
| 5 | WP8269296 | Seal, Door (Replaces: 8269296) |
|
Immediately | $ 188.17 | ||||
| 6 | WPW10254545 | Gasket, Vent (Replaces: W10254545) |
|
$ 12.19 | |||||
| 7 | WPW10254548 | Cover, Vent (also Order Item 6) (Replaces: W10254548) |
|
$ 73.14 | |||||
| 8 | WPW10300737 | Dispenser, Assembly (Replaces: W10240176) |
|
$ 232.82 | |||||
| 9 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 10 | WPW10462232 | Bracket, Dispenser (Replaces: W10341423) |
|
$ 37.79 | |||||
| 11 | WPW10199683 | Cap, Rinse Aid (Replaces: W10199683) |
|
$ 28.13 |
