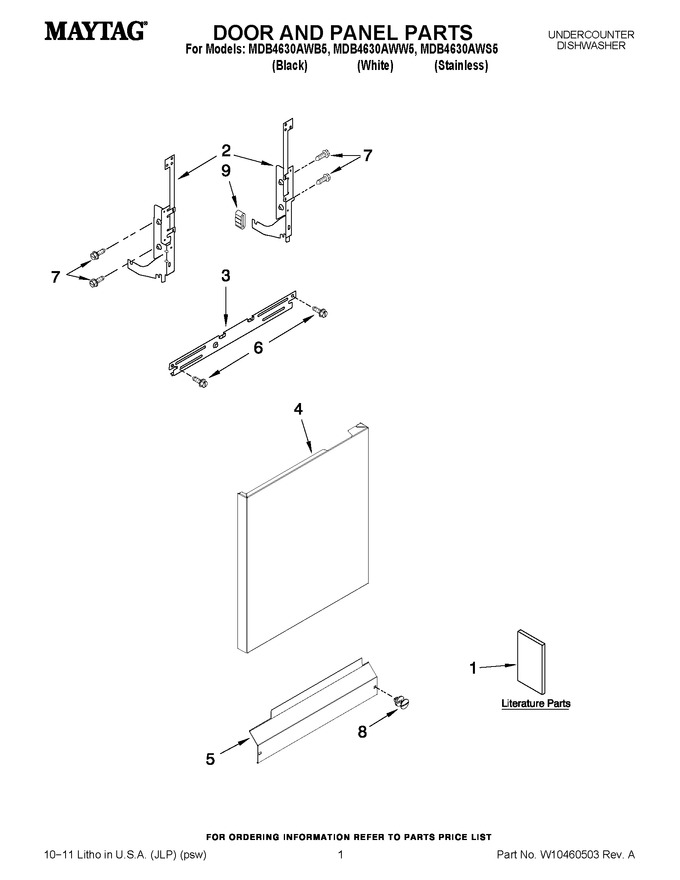

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10321979 | Tech Sheet (english) |
|
- | |||||
| 1 | W10321980 | Tech Sheet (french) |
|
- | |||||
| 1 | W10435039 | Installation, Instructions |
|
- | |||||
| 1 | W10398586 | Energy Guide |
|
- | |||||
| 1 | W10275148 | Guide, Use & Care English/french |
|
- | |||||
| 2 | W11806566 | Arm, Hinge (left) (Replaces: W10143374) |
|
Immediately | $ 71.77 | ||||
| 2 | W11613572 | Arm, Hinge (right) (Replaces: W10143373) |
|
Immediately | $ 83.93 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | W10274891 | Panel Front (white) |
|
$ 133.14 | |||||
| 4 | WPW10274890 | Panel Front (black) (Replaces: W10274890) |
|
$ 358.95 | |||||
| 4 | W10274900 | Panel Front(stainless) |
|
$ 152.48 | |||||
| 5 | W11763736 | Access Panel (Replaces: W10441006) |
|
Immediately | $ 42.25 | ||||
| 6 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 7 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 | ||||
| 8 | WPW10503548 | Fastener (Replaces: W10331789) |
|
Immediately | $ 30.39 | ||||
| 9 | WP8268961 | Sleeve, Friction (Replaces: 8268961) |
|
Immediately | $ 5.93 |
