01 - Door And Panel Parts

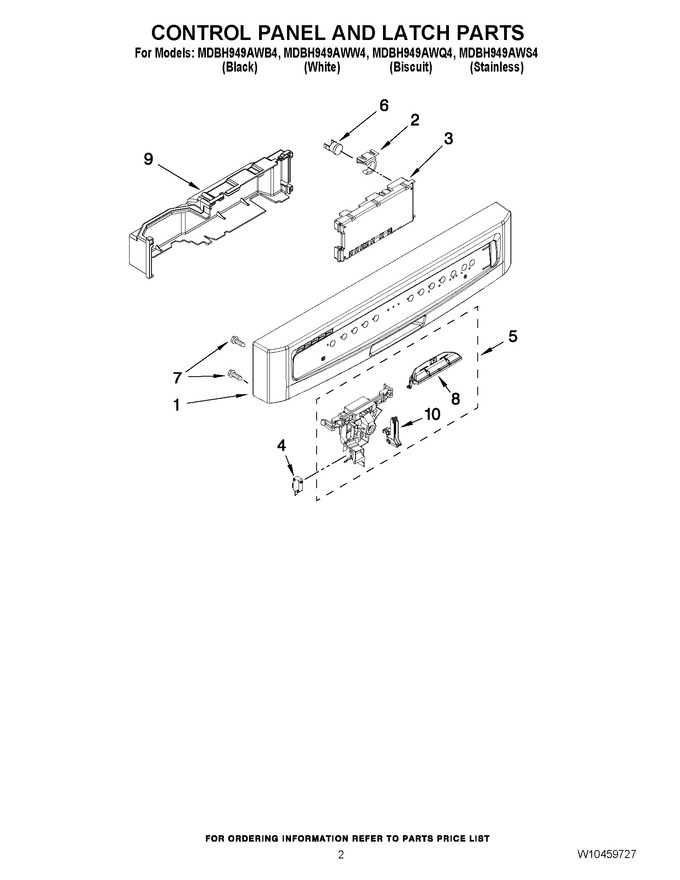

02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10810383		Console Asm. (includes Active Overlay & Insert) (biscuit)   (Replaces: W10254825)				$ 418.33
1	W10810104		Console Asm. (includes Active Overlay & Insert) (black)   (Replaces: W10254823)				$ 417.66
1	W10810347		Console Asm. (includes Active Overlay & Insert) (white)   (Replaces: W10254824)				$ 417.26
2	8546546		Clip, Bi-metal				$ 7.82
3	WPW10285180		Control Electronic   (Replaces: W10285180)			Immediately	$ 316.89
4	W10102496		Switch, Door				$ 14.04
5	WPW10240053		Latch Assembly   (Replaces: W10240053)				$ 113.02
6	W10258275		Bi-metal   (Replaces: W10344801)			Immediately	$ 41.71
7	WP304231		Screw   (Replaces: 304231)			Immediately	$ 8.14
8	W10240154		Handle, Latch (black)				$ 136.70
8	W10240155		Handle, Latch (white)				$ 136.55
8	W10240156		Handle, Latch (biscuit)		Appelez-nous	-
9	W10158350		Cover,cntrl Assy				$ 26.50
10	WP8524472		Actuator, Latch   (Replaces: 8524472)				$ 111.29
