SELECT A DIAGRAM

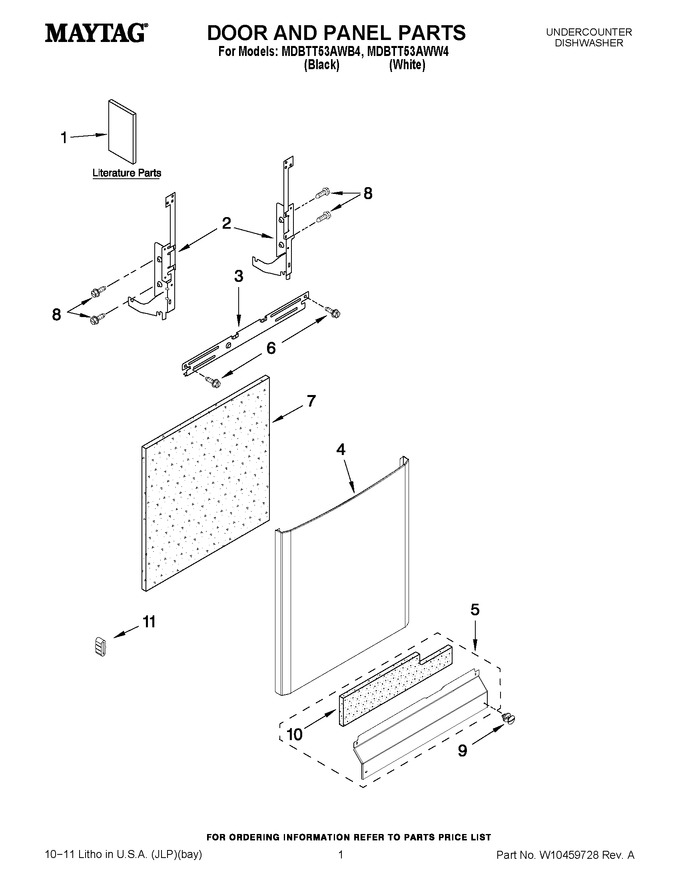

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10398587		Energy Guide		Appelez-nous	-
1	W10240117		Guide, Use & Care (spanish)		Appelez-nous	-
1	W10142800		Tech Sheet		Appelez-nous	-
1	W10435039		Instructions, Installation		Appelez-nous	-
1	W10240116		Guide, Use & Care (english/french)		Appelez-nous	-
2	W11613572		Arm, Hinge (right)   (Replaces: W10143373)			Immediately	$ 83.93
2	W11806566		Arm, Hinge (left)   (Replaces: W10143374)			Immediately	$ 71.77
3	8268983		Stiffener, Door				$ 38.77
4	W10240060		Panel Front (black)		Appelez-nous	-
4	W10240061		Panel Front (white)		Appelez-nous	-
5	W10827631		Access Panel   (Replaces: W10369024)			Immediately	$ 195.64
6	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
7	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
8	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
9	WPW10503548		Screw   (Replaces: W10331789)			Immediately	$ 30.39
10	W10831329		Insulation   (Replaces: W10073540)			Immediately	$ 43.30
11	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 5.93

    View Diagram in Separate Window       Print Part List
