View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

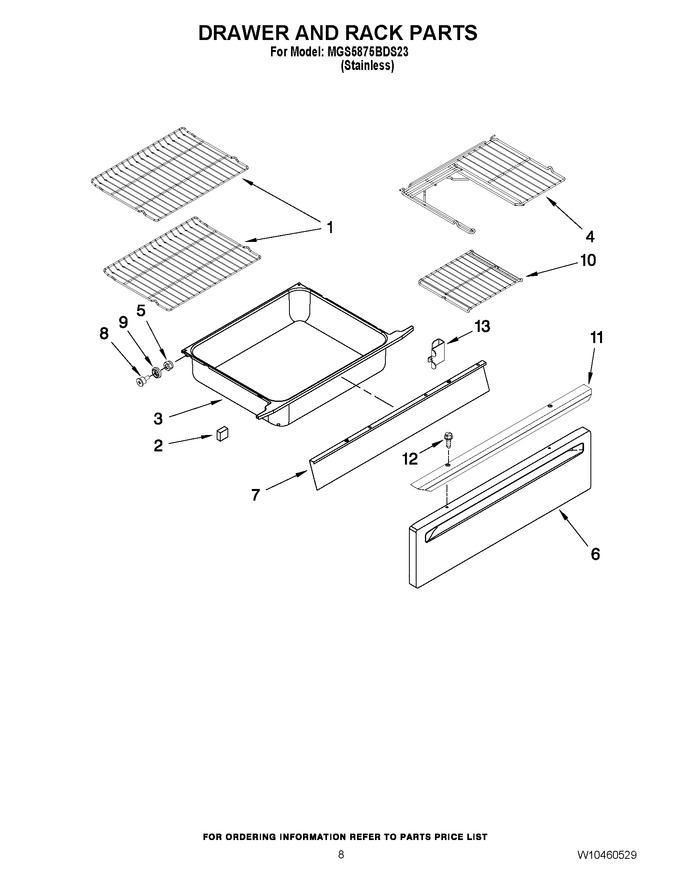

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7801P173-60 | Rack, Oven |
|
$ 55.72 | |||||
| 2 | WP74005546 | Spacer, Rubber (Replaces: 8010P130-60) |
|
$ 11.06 | |||||
| 3 | WP3405F037-80 | Drawer, Service (Replaces: 3405F033-80) |
|
$ 355.81 | |||||
| 4 | W10273862 | Rack, Oven (half) |
|
$ 56.22 | |||||
| 5 | WP488130 | Nut, Lock (Replaces: 7103P082-60) |
|
$ 7.32 | |||||
| 6 | W10253205 | Panel,drawer Front (stainless) |
|
$ 103.90 | |||||
| 7 | 2404F030-51 | Lining, Drawer |
|
- | |||||
| 8 | W10272883 | Roller, Drawer |
|
$ 7.90 | |||||
| 9 | 7118P032-60 | Shaft, Roller |
|
- | |||||
| 10 | W10275560 | Rack, Oven Half (insert) |
|
$ 69.52 | |||||
| 11 | W10180296 | Handle, Drawer |
|
$ 99.76 | |||||
| 12 | W11233072 | Screw (Replaces: 7101P634-60) |
|
Immediately | $ 14.72 | ||||
| 13 | 3801F887-51 | Bracket, Drawer |
|
$ 8.32 |
