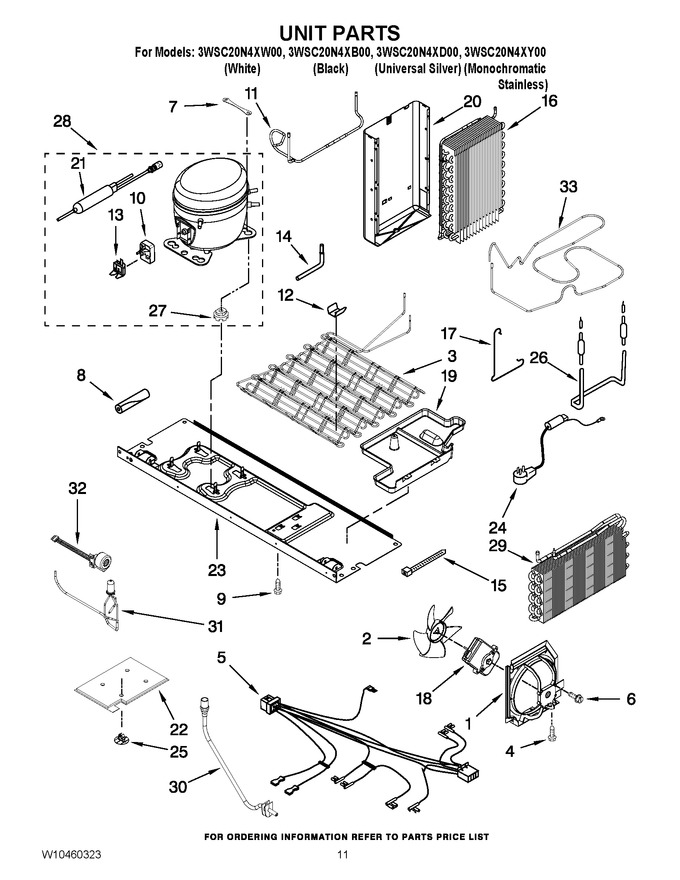

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10251467		Air Baffle   (Replaces: W10251467)				$ 84.80
2	W11458267		Fan, Blade   (Replaces: 2225834)			Immediately	$ 25.19
3	W11708426		Condenser Assembly   (Replaces: W10240365)				$ 271.19
4	W10142255		Screw		Appelez-nous	-
5	W10253321		Clip		Appelez-nous	-
6	WPW10171469		Screw   (Replaces: W10171469)			Immediately	$ 11.61
7	W10236396		Strap, Compressor			Immediately	$ 20.81
8	W11751592		Sleeve   (Replaces: W10303521)			Immediately	$ 21.32
9	W11544659		Screw   (Replaces: W10142294)				$ 14.35
10	W10364559		Start Device Relay (production)		Appelez-nous	-
11	WPW10223328		Tube Suction With Check Valve   (Replaces: W10223328)				$ 92.85
12	W10683556		Clip, Condenser(2)   (Replaces: W10248621)				$ 19.38
13	W10457584		Overload (production)		Appelez-nous	-
14	2325479		Process Tube		Appelez-nous	-
15	WP2205813		Strap   (Replaces: 2205813)				$ 8.11
16	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 356.84
17	2161324		Clamp		Appelez-nous	-
18	W10837641		Fan, Motor   (Replaces: W10293680)		Appelez-nous	-
19	WPW10369752		Tray, Evaporator   (Replaces: W10369752)				$ 152.62
20	W10343823		Heat Shield				$ 61.15
21	WPW10143759		Drier (production)   (Replaces: W10286069)			Immediately	$ 30.78
22	W10366750		Unit Cover, Bottom		Appelez-nous	-
23	W10277704		Support Plate, Compressor				$ 169.00
24	W10253252		Power Cord		Appelez-nous	-
25	W10296661		Clip				$ 17.78
26	W10837285		Heater, Defrost   (Replaces: W10251473)		Appelez-nous	-
27	WPW10169124		Grommet (production)   (Replaces: 10835903)				$ 7.55
28	W10475481		Compressor (includes Items 10, 13, 21, & 27) (also Order 876765 Tube Kit)   (Replaces: W10374153)		Appelez-nous	-
29	WPW10643261		Evaporator, Dual - Rc   (Replaces: W10156654)			Immediately	$ 343.44
30	W11409190		Tube, Drain   (Replaces: W10223368)			Immediately	$ 65.34
31	W11590197		Assy Valve Body   (Replaces: W10331270)			Immediately	$ 114.11
32	WPW10364560		Valve Coil, 3-way   (Replaces: W10364560)				$ 225.88
33	W10370348		Tube-heat Loop Precooler		Appelez-nous	-
NI	876764		Valve, Access (3/16``)			Immediately	$ 95.92
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
