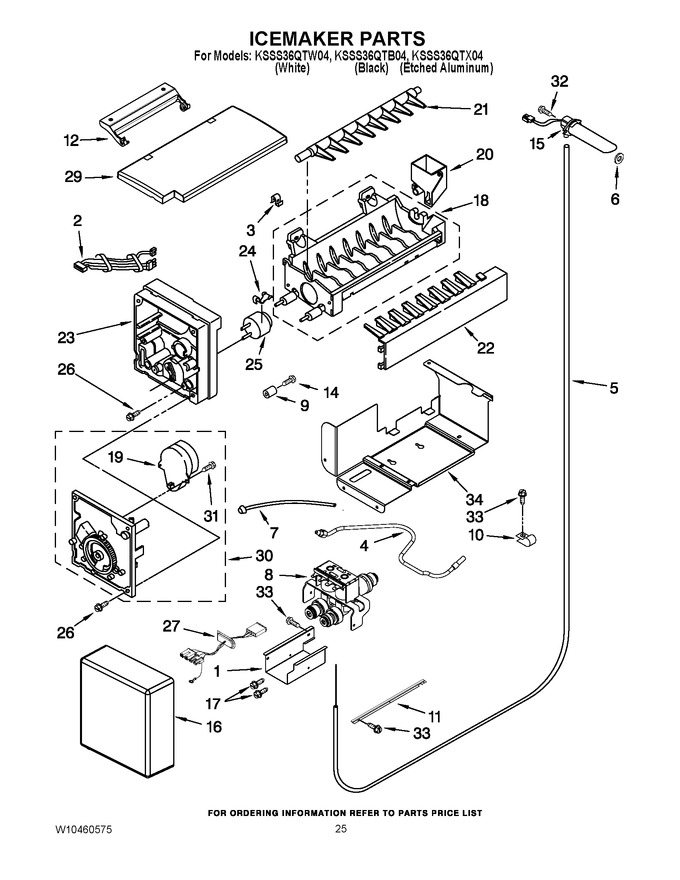

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2320599		Shield, Valve		Appelez-nous	-
2	2310192		Wire Assembly, Icemaker		Appelez-nous	-
3	WP628379		Clip, Fuse   (Replaces: 628379)				$ 11.10
4	W11565275		Tube, Filter Inlet   (Replaces: W10296807)				$ 67.89
5	2320658		Water Tube				$ 71.00
6	2302758		Seal Gasket		Appelez-nous	-
7	W11533506		Tube, Filter Outlet   (Replaces: 2317912)			Immediately	$ 33.15
8	WPW10159843		Valve, Solenoid   (Replaces: W10159843)			Immediately	$ 336.67
9	2252354		Spacer		Appelez-nous	-
10	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 11.54
11	2320559		Support, Valve				$ 88.79
12	WP2198641		Bracket, Icemaker Cover   (Replaces: 2198641)				$ 7.55
14	WP489474		Screw   (Replaces: 489474)			Immediately	$ 8.55
15	W10460127		Tube, Water Inlet   (Replaces: 2302756)				$ 208.25
16	WPW10289690		Cover   (Replaces: W10289690)			Immediately	$ 8.82
17	WPW10141604		Screw   (Replaces: W10141604)				$ 8.85
18	WPW10122550		Mold & Heater (also Order 542638 Silicone Grease)   (Replaces: W10122550)				$ 217.64
19	N/P		Motor, (not Serviceable Order Item 30)		Appelez-nous	-
20	W10122561		Cup-water Fill   (Replaces: W10122568)				$ 29.16
21	626753		Ejector				$ 14.64
22	WPW10272164		Ice Stripper   (Replaces: W10272164)				$ 106.03
23	WP2195914		Support   (Replaces: 2194712)				$ 109.80
24	WP2315522		Retainer Thermostat   (Replaces: 2315522)				$ 11.60
25	WP627985		Thermostat (also Order 542639 Cement Alumilastic)   (Replaces: W10290336)				$ 114.64
26	8533917		Screw				$ 14.04
27	W10139199		Wire Assembly				$ 145.79
29	W10504752		Cover, Icemaker   (Replaces: 2317039)				$ 90.78
30	8201515		Module Assembly (includes Items 19 & 31)   (Replaces: W10223929)			Immediately	$ 141.64
31	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
32	W11624204		Screw   (Replaces: 486194)				$ 14.72
33	W11624204		Screw   (Replaces: 486194)				$ 14.72
34	2300167		Bracket, Icemaker Mounting		Appelez-nous	-
100	WPW10277449		Complete Icemaker Assembly   (Replaces: W10277449)				$ 276.19
NI	WPW10519441		Ice Container Assembly   (Replaces: W10395658)				$ 365.81
NI	W10129081		Handle Kit For Previous Architect Series (stainless)				$ 254.74
NI	W10355016		Cleaner, (stainless Steel)		Appelez-nous	-
