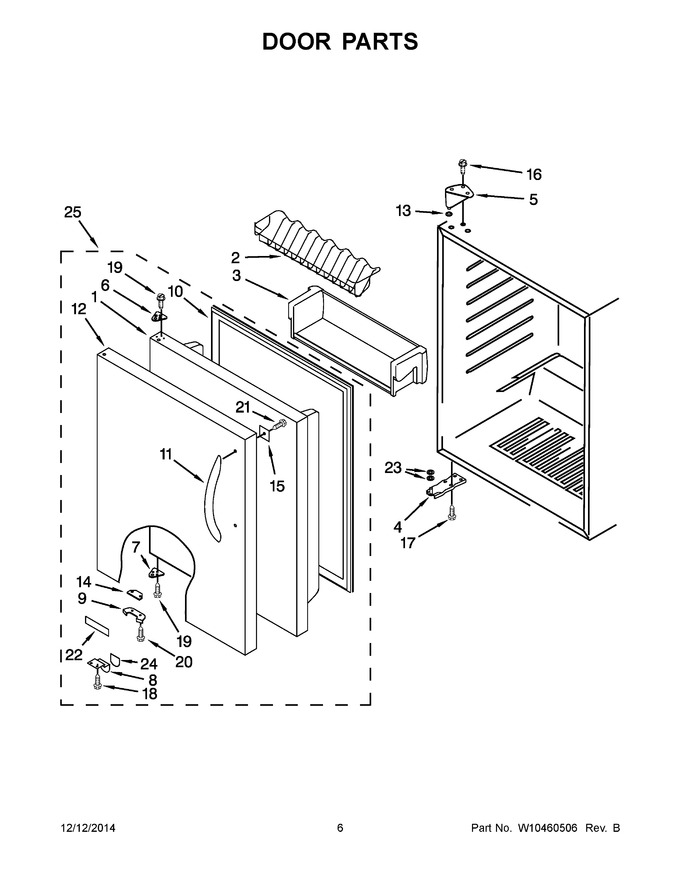

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10460875		Assembly, Door				$ 299.81
2	4344751		Holder, Beverage				$ 84.46
3	4344752		Bin, Door				$ 81.31
4	4344787		Hinge, Bottom				$ 217.36
5	4344754		Hinge, Top				$ 89.01
6	4344755		Spacer, Top Hinge				$ 20.03
7	4344798		Spacer, Bottom Hinge				$ 20.03
8	4344757		Actuator, Switch				$ 154.08
9	4344758		Stop, Door   (Replaces: W10238067)		Appelez-nous	-
10	4344759		Gasket, Door		Appelez-nous	-
11	WP9872207S		Handle, Door   (Replaces: 4344810)				$ 193.95
12	W10460913		Skin, Door (stainless Steel)		Appelez-nous	-
13	4344760		Washer (top)				$ 15.91
14	4344788		Spacer, Door				$ 171.37
15	4344809		Plate, Door Handle		Appelez-nous	-
16	4344796		Screw				$ 16.82
17	4344906		Screw		Appelez-nous	-
18	W10837731		Screw   (Replaces: W10204865)				$ 8.30
19	W10243123		Screw				$ 16.82
20	4344801		Screw				$ 16.82
21	4344808		Screw		Appelez-nous	-
22	W10239386		Name Plate		Appelez-nous	-
23	W11241702		Washer   (Replaces: W10162992)				$ 14.27
24	W10163191		Label				$ 14.85
25	W10460828		Door, Complete (with Gasket)		Appelez-nous	-
NI	N/P		Optional Parts Not Illustrated		Appelez-nous	-
NI	8171420		Cleaner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
