01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:

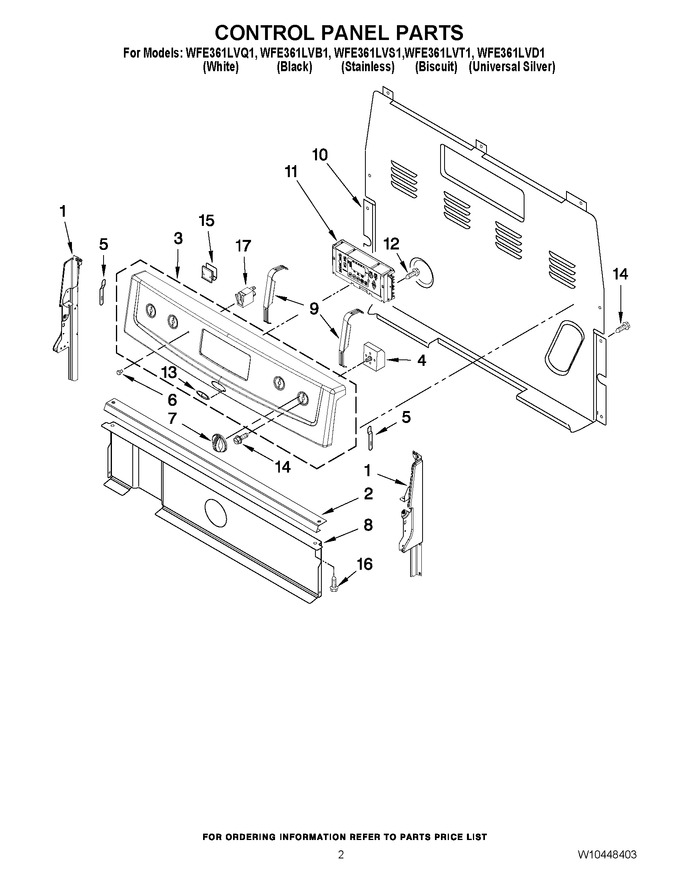

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black Lh) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1 | W11219365 | Endcap (white Lh) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219370 | Endcap (white Rh) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1 | W11230612 | Endcap (biscuit, Rh) (Replaces: W10184436) |
|
- | |||||
| 1 | W11219665 | Endcap (black Rh) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 1 | W11230611 | Endcap (biscuit, Lh) (Replaces: W10184435) |
|
- | |||||
| 2 | W10525121 | Bracket, Console (Replaces: W10182322) |
|
$ 98.85 | |||||
| 3 | W10184051 | Panel, Control (universal Silver) |
|
- | |||||
| 3 | W10184057 | Panel, Control (white) |
|
- | |||||
| 3 | W10170635 | Panel, Control (stainless) |
|
$ 152.96 | |||||
| 3 | W10184060 | Panel, Control (black) |
|
- | |||||
| 3 | W10184058 | Panel, Control (biscuit) |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | WP3149400 | Switch, Infinite (right Front) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 4 | WPW10434452 | Switch, Infinite (left Front (dual)) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 5 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WP9761963 | Knob, Infinite (biscuit) (Replaces: 9761963) |
|
$ 20.78 | |||||
| 7 | WP9761964 | Knob, Infinite (black) (Replaces: 9761964) |
|
Immediately | $ 22.30 | ||||
| 7 | WP9761962 | Knob, Infinite (white) (Replaces: 9761962) |
|
Immediately | $ 20.65 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | 9762078 | Brkt, Mntg Eoc |
|
$ 38.13 | |||||
| 10 | WP8272473 | Cover, Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | WPW10476687 | Control, Range (white) (Replaces: W10271749) |
|
$ 463.37 | |||||
| 11 | WPW10271751 | Control, Range (biscuit) (Replaces: W10271751) |
|
$ 374.78 | |||||
| 11 | W10876180 | Control, Range (black) (Replaces: W10271750) |
|
$ 439.87 | |||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 13 | W10209617 | Nameplate |
|
$ 35.30 | |||||
| 14 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 15 | WP8273564 | Clip - Cover (Replaces: 8273564) |
|
$ 12.66 | |||||
| 16 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 17 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 86.31 |
