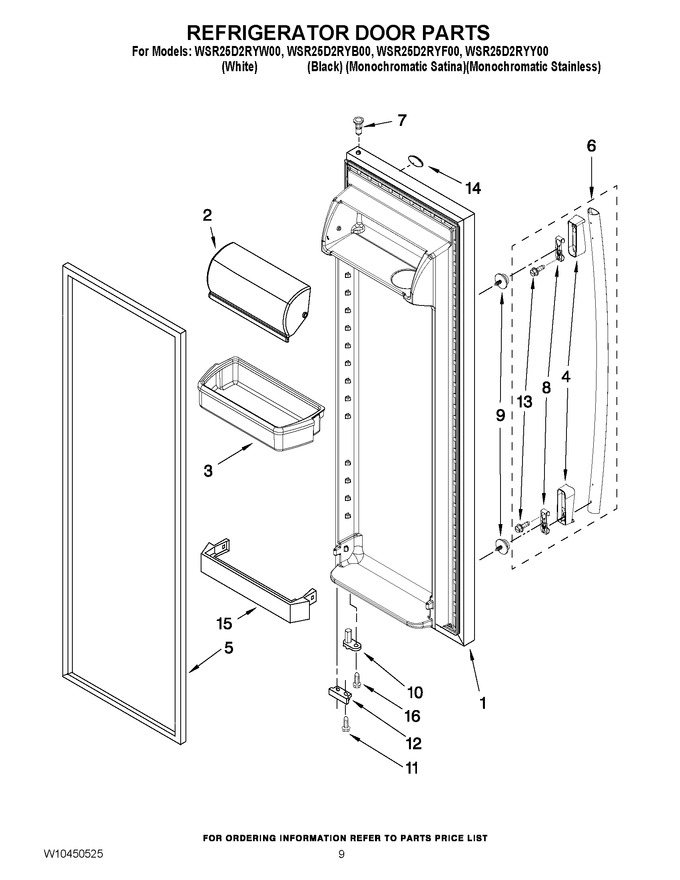

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10169198		Refrigerator Door (includes Item 5) (black)		Appelez-nous	-
1	W10350010		Refrigerator Door (includes Item 5) (mono Satina)		Appelez-nous	-
1	W10355767		Refrigerator Door (includes Item 5) (mono Stainless)		Appelez-nous	-
1	W10169197		Refrigerator Door (includes Item 5) (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
3	WPW10321304		Door Bin   (Replaces: W10321303)			Immediately	$ 44.73
4	W10127816		Endcap, Handle (gray)				$ 29.99
4	W10127813		Endcap, Handle (white)				$ 82.43
4	W10127814		Endcap, Handle (black)		Appelez-nous	-
5	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
5	WPW10136734		Door Gasket, Magnetic (gray)   (Replaces: 2326338)				$ 335.39
5	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 333.00
6	W10210942A		Handle, Assy (black)   (Replaces: W10210943)				$ 129.53
6	WPW10257120		Handle Assy (gray)   (Replaces: W10257120)				$ 59.70
6	W10210942A		Handle, Assy (white)   (Replaces: W10210942)				$ 129.53
7	WP2182181		Thimble-top   (Replaces: 2308091)				$ 8.15
8	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
9	WPW10288153		Screw, Mounting   (Replaces: W10288153)			Immediately	$ 9.65
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WPW10142233		Screw   (Replaces: W10142233)				$ 8.93
12	W10219812		Bracket, Door Stop (black)				$ 24.48
12	W10219811		Bracket, Door Stop (chrome)				$ 25.43
13	W10267047		Screw   (Replaces: W10201588)				$ 13.47
14	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
15	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 72.80
16	WP3400012		Screw   (Replaces: W10142285)				$ 8.26
