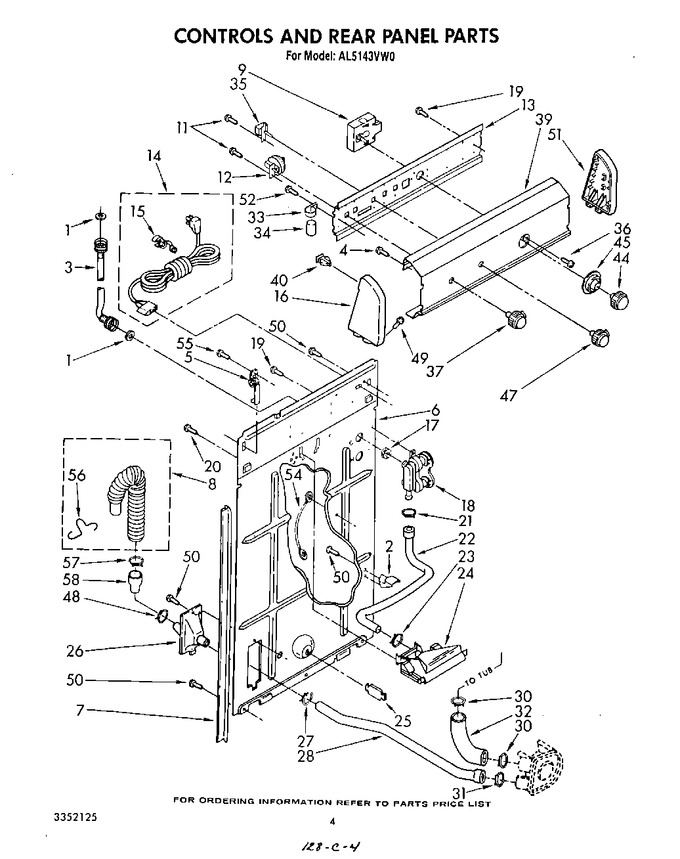

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 7.70
2	63162		Pin, Cabinet Guide (2)		Appelez-nous	-
3	WP89503		Hose, Water Inlet (2)   (Replaces: 660028)			Immediately	$ 24.09
4	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.85
5	387402		Hinge, Console (2)				$ 5.84
6	3348430		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
8	285666		Hose, Corrugated Plastic Drain (10 Ft.) (not Included)   (Replaces: 388418)			Immediately	$ 62.34
8	285664		Hose, Corrugated Plastic Drain (5-1/2 Ft.)   (Replaces: 387325)			Immediately	$ 36.89
9	285952		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 3351734)				$ 357.50
11	355326		Screw		Appelez-nous	-
12	64103		Switch, Water Level				$ 168.01
13	3349232		Bracket, Control		Appelez-nous	-
14	W10820044		Cord, Power   (Replaces: 62734)				$ 142.73
15	W11733005		Strain Relief, Power Cord   (Replaces: 63848)				$ 12.93
16	3352243		Cap, End (l.h.)		Appelez-nous	-
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 11.71
18	285805		Valve, Water Mixing   (Replaces: 358992)			Immediately	$ 55.08
19	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 6.95
20	WP3390631		Screw, Ground (10-16 X 3/8)   (Replaces: 62863)				$ 7.82
21	WP596669		Clamp, Hose   (Replaces: 660635)			Immediately	$ 8.40
22	WP3357328		Hose, Vacuum Break   (Replaces: 62662)			Immediately	$ 24.78
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.40
24	WP3347034		Break, Vacuum   (Replaces: 3347034)			Immediately	$ 75.28
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 18.90
26	WPW10358149		Connector, Drain Hose   (Replaces: 3349018)			Immediately	$ 48.16
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
28	WP3348552		Hose, Pump To Drain Connector   (Replaces: 3348552)				$ 84.85
30	WP371502		Clamp, Hose   (Replaces: 371502)				$ 11.53
31	WP285655		Clamp, Hose   (Replaces: 660628)			Immediately	$ 8.39
32	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 26.68
33	357030		Clamp, Capacitor				$ 21.09
34	WP8572717		Capacitor, Motor Start (mfd 189, 110 Volts)   (Replaces: 357021)			Immediately	$ 80.14
35	3347122		Switch, Water Temperature		Appelez-nous	-
36	WP356418		Screw, Timer Mounting (10-32 X 1) (2)   (Replaces: 96435)				$ 7.92
37	3352168		Knob, Water Level		Appelez-nous	-
39	3352222		Panel, Console		Appelez-nous	-
40	689559		Nut, Push-in (2)		Appelez-nous	-
44	280193		Knob, Timer   (Replaces: 3352173)				$ 57.07
45	3388184		Dial, Timer		Appelez-nous	-
47	3352167		Knob, Water Temperature		Appelez-nous	-
48	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
49	WP388326		Screw, 8-18 (2) (panel To Top)   (Replaces: 64211)				$ 8.11
50	WP3390631		Screw, 10-16 X 3   (Replaces: 62863)				$ 7.82
51	3352238		Cap, End (r.h.)		Appelez-nous	-
52	WP3390631		Screw,10-16x5/16   (Replaces: 9420601)				$ 7.82
54	364089		Wire, Ground		Appelez-nous	-
55	WP308685		Screw, Hinge Mounting (10-16 X 1/2)   (Replaces: 9416643)			Immediately	$ 7.87
56	3350222		Retainer, Wire				$ 34.76
57	WP616099		Clamp, Hose   (Replaces: 371504)			Immediately	$ 7.81
58	WP384496		Coupling, Hose   (Replaces: 384496)				$ 86.09
