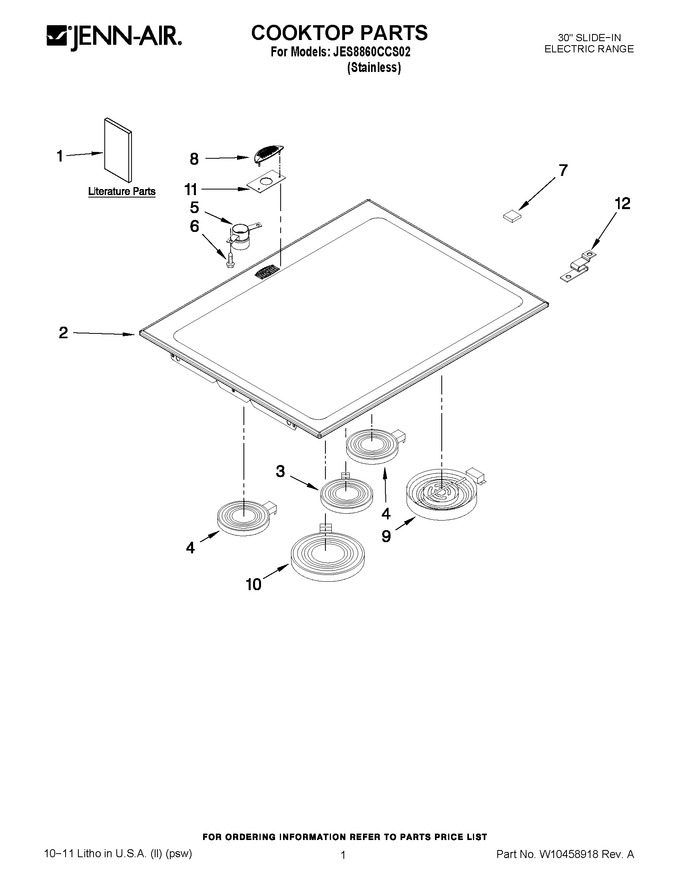

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10253461 | Installation Instructions |
|
- | |||||
| 1 | W10394694 | Wiring Diagram (english) |
|
- | |||||
| 1 | W10394699 | Wiring Diagram (french) |
|
- | |||||
| 1 | 9762761 | Safer Ckg. Tips |
|
- | |||||
| 1 | W10235523 | Use & Care Guide |
|
- | |||||
| 2 | W10236961 | Cooktop (black) |
|
$ 495.31 | |||||
| 3 | WP9762851 | Elmnt, Warm (ctr) (Replaces: 9762851) |
|
Immediately | $ 290.36 | ||||
| 4 | W11171119 | Element (lr/rr), 1200w (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 5 | W10233479 | Tube, Vent Upper |
|
$ 74.82 | |||||
| 6 | WP7101P498-60 | Screw (Replaces: 7101P498-60) |
|
$ 7.86 | |||||
| 7 | 8010P152-60 | Spacer, Rubber |
|
- | |||||
| 8 | 7744P464-60 | Trim, Vent (black) |
|
$ 85.09 | |||||
| 9 | W11101459 | Element,triple-rf (2700w) (Replaces: W10259005) |
|
Immediately | $ 215.72 | ||||
| 10 | WPW10423408 | Element,dual-lf (3000/1400w) (Replaces: W10423408) |
|
Immediately | $ 338.16 | ||||
| 11 | 7201P076-60 | Gasket, Vent Trim |
|
- | |||||
| 12 | 8004P093-60 | Support, Element |
|
$ 10.61 |
