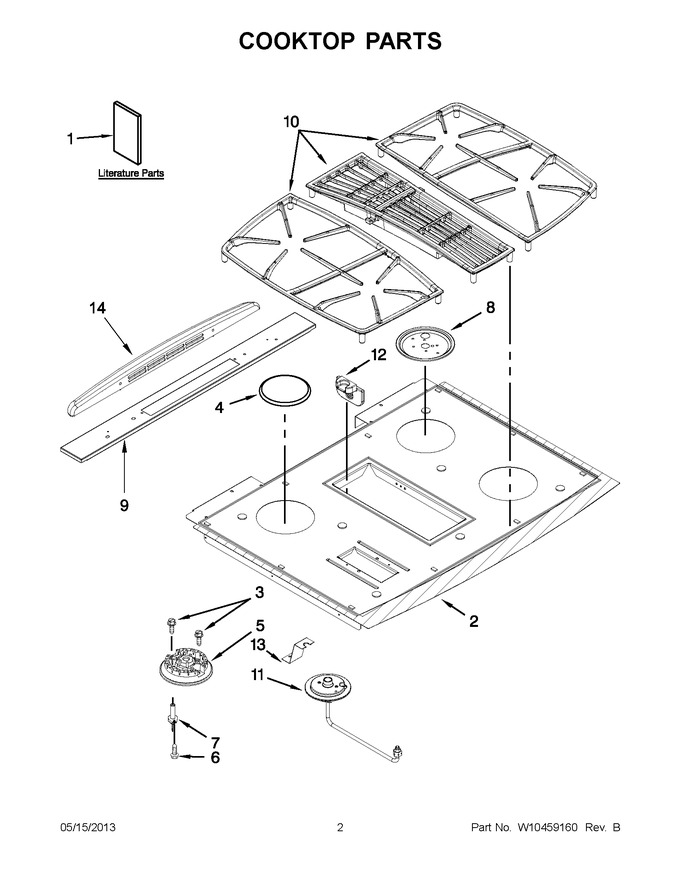

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | W10394692 | Wiring Diagram |
|
- | |||||
| 1 | W10235527 | Use & Care Guide |
|
- | |||||
| 1 | 8106P068-60 | Card, Flow Tester |
|
$ 6.65 | |||||
| 1 | W10253463 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 2 | W10235921 | Top, Main (black) |
|
$ 610.39 | |||||
| 3 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 8.56 | ||||
| 4 | 7504P260-60 | Caps, Burner (black) |
|
$ 108.31 | |||||
| 5 | 7505P339-60 | Assembly, Burner (right Rear) |
|
$ 57.66 | |||||
| 5 | 74007736 | Assembly, Burner (right Front) (Replaces: 7505P306-60) |
|
Immediately | $ 117.07 | ||||
| 5 | 7505P349-60 | Assembly, Burner (left Front) |
|
- | |||||
| 5 | 74007735 | Assembly, Burner (left Rear) (Replaces: 7505P305-60) |
|
Immediately | $ 114.18 | ||||
| 6 | WP8273062 | Screw (Replaces: 7101P606-60) |
|
Immediately | $ 7.91 | ||||
| 7 | WP74009336 | Ignitor, Cooktop (Replaces: 7432P121-60) |
|
Immediately | $ 27.00 | ||||
| 8 | 3424F039-09 | Bowl, Dual |
|
$ 14.11 | |||||
| 9 | 4005F789-09 | Cover, Trim |
|
$ 109.65 | |||||
| 10 | 7518P338-60 | Grate (black (left)) |
|
- | |||||
| 10 | 7772P055-60 | Grate (black (centre)) |
|
- | |||||
| 10 | 7518P332-60 | Grate (black (right)) |
|
$ 123.57 | |||||
| 11 | WP7527P086-60 | Holder, Orifice (left Rear) (Replaces: 7527P086-60) |
|
$ 189.78 | |||||
| 11 | 74011741 | Holder, Orifice (right Rear) (Replaces: 7527P085-60) |
|
$ 193.47 | |||||
| 11 | 7527P087-60 | Holder, Orifice (right Front) |
|
$ 70.80 | |||||
| 11 | WP7527P061-60 | Holder, Orifice (left Front) (Replaces: 7527P061-60) |
|
$ 113.03 | |||||
| 12 | 74010860 | Locator, Grate (Replaces: 8008P075-60) |
|
$ 10.57 | |||||
| 13 | 3801F681-45 | Bracket, Orifice |
|
$ 7.82 | |||||
| 14 | 7724P200-60 | Cover, Vent |
|
$ 88.44 |
