View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

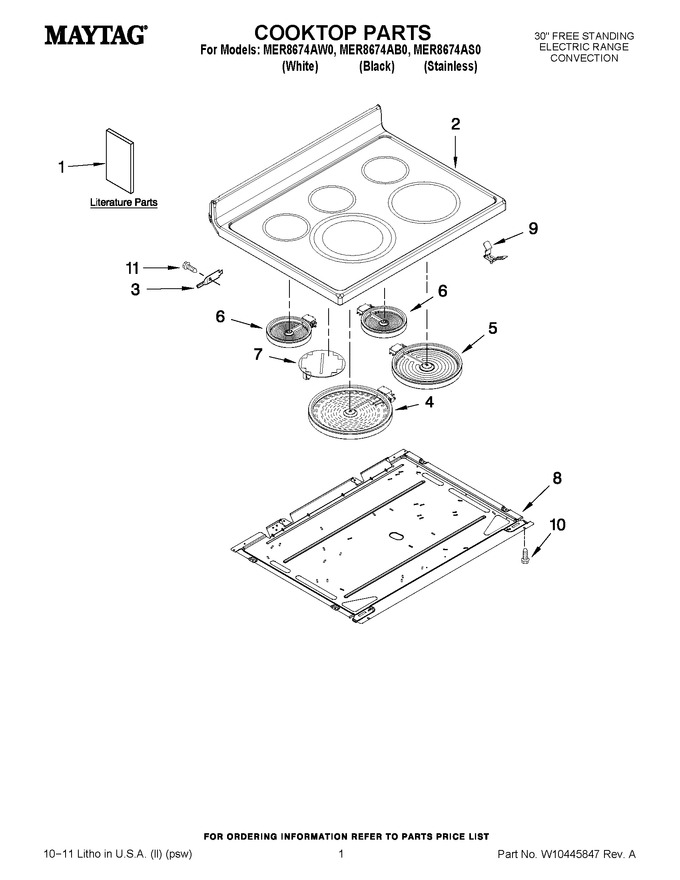

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10432691 | Wiring Diagram |
|
- | |||||
| 1 | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1 | W10403811 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Brochure, Safe Tip |
|
- | |||||
| 1 | W10454293 | Use & Care Guide |
|
- | |||||
| 2 | W10441394 | Cooktop (black) (Replaces: W10392620) |
|
- | |||||
| 2 | W10392618 | Cooktop (white) |
|
- | |||||
| 3 | WP3195060 | Pin, Hinge (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 4 | WPW10189281 | Element (lf), 3000w Dual (Replaces: W10189281) |
|
Immediately | $ 377.54 | ||||
| 5 | WPW10251108 | Element (rf), 3200w (Replaces: W10251108) |
|
Immediately | $ 223.66 | ||||
| 6 | W11171119 | Element (lr/rr), 1200w (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 7 | W11047668 | Element (cr), Warm Zone (Replaces: W10388271) |
|
$ 132.95 | |||||
| 8 | W11728329 | Pan, Radiant (Replaces: W10106409) |
|
Immediately | $ 143.49 | ||||
| 9 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 11 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 |
