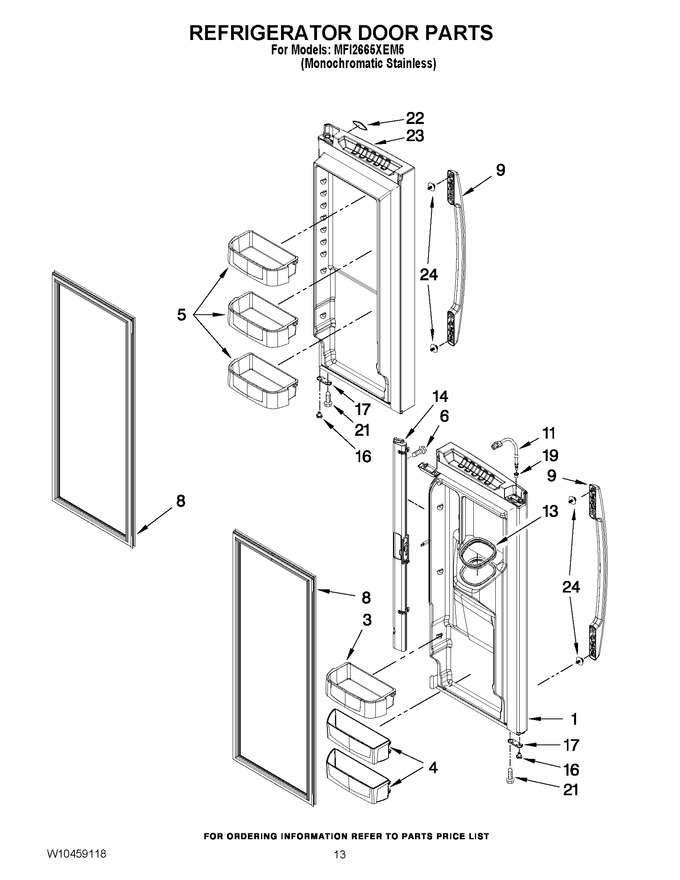

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107315SQ | Door, Left Stainless (Replaces: 13107315S) |
|
- | |||||
| 3 | W10290553 | Bucket, Upper |
|
- | |||||
| 4 | W10297151 | Bucket, Lower |
|
- | |||||
| 5 | WP12840004 | Bucket, Gallon (Replaces: 12840004) |
|
$ 85.40 | |||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 8 | W10830055 | Gasket, Door Stainless (Replaces: W10163991) |
|
Immediately | $ 255.29 | ||||
| 9 | W10252288A | Handle, Door Stainless (Replaces: W10252288) |
|
$ 116.87 | |||||
| 11 | W10296451 | Waterline, Door |
|
$ 53.54 | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 29.48 | ||||
| 14 | WP12722815AP | Mullion, Door Stainless (Replaces: 12722815AP) |
|
$ 304.21 | |||||
| 16 | WP12028505AP | Closure, Door Stainless (Replaces: 12028505AP) |
|
Immediately | $ 55.31 | ||||
| 17 | W11703060 | Stop, Door Stainless (Replaces: 12968202AP) |
|
$ 13.91 | |||||
| 19 | 12996601 | Clip, Bushing Wire (left Door) |
|
$ 10.05 | |||||
| 21 | WP98165 | Screw (Replaces: 12990521) |
|
$ 7.71 | |||||
| 22 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 63.45 | ||||
| 23 | 13107316SQ | Door, Right Stainless (Replaces: 13107316S) |
|
$ 1,006.31 | |||||
| 24 | WPW10288153 | Screw, Handle (shoulder) (Replaces: W10288153) |
|
Immediately | $ 8.69 |
