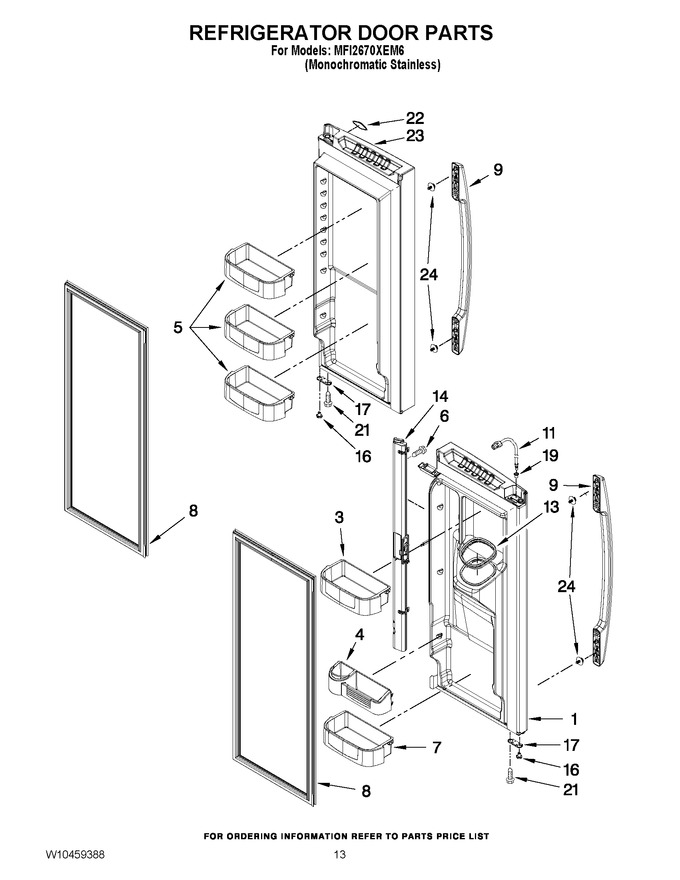

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107315SQ		Door, Left Stainless   (Replaces: 13107315S)		Appelez-nous	-
3	W10290553		Bucket, Upper		Appelez-nous	-
4	W10290555		Bucket, Wine				$ 34.29
5	WP12840004		Bucket, Gallon   (Replaces: 12840004)				$ 94.89
6	W11311945		Screw   (Replaces: 12990204)				$ 14.72
7	W10297151		Bucket, Lower		Appelez-nous	-
8	W10830055		Gasket, Door Stainless   (Replaces: W10163991)			Immediately	$ 229.10
9	W10252288A		Handle, Door Stainless   (Replaces: W10252288)				$ 129.86
11	W10296451		Waterline, Door				$ 53.54
13	WPW10287601		Seal, Ice Chute   (Replaces: W10287601)			Immediately	$ 32.76
14	WP12722815AP		Mullion, Door Stainless   (Replaces: 12722815AP)				$ 338.01
16	WP12028505AP		Closure, Door Stainless   (Replaces: 12028505AP)			Immediately	$ 61.46
17	W11703060		Closure, Door (stainless)   (Replaces: 12968202AP)				$ 15.46
19	12996601		Clip, Bushing Wire (left Door)				$ 10.05
21	WP98165		Screw   (Replaces: 12990521)				$ 8.57
22	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
23	13107316SQ		Door, Right Stainless   (Replaces: 13107316S)				$ 1,118.12
24	WPW10288153		Screw, Handle (shoulder)   (Replaces: W10288153)			Immediately	$ 9.65
