SELECT A DIAGRAM

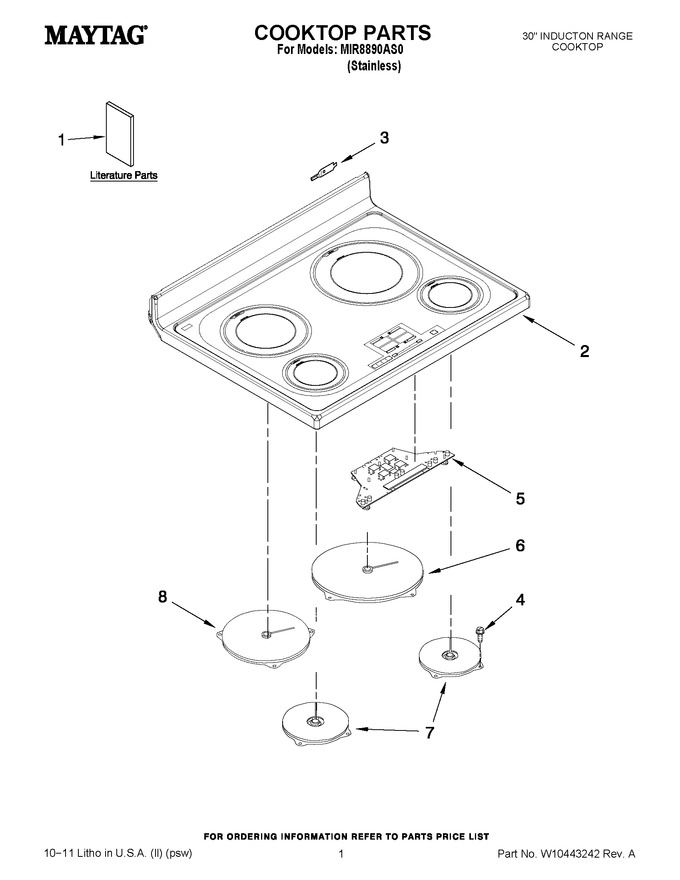

01 - Cooktop Parts


02 - Interior Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403811		Instruct, Install		Appelez-nous	-
1	9762761		Tips, Safe Cooking		Appelez-nous	-
1	W10392925		Guide, Use & Care		Appelez-nous	-
1	W10441306		Diagram, Wiring		Appelez-nous	-
1	W10392954		Diagram, Mrc		Appelez-nous	-
2	W10400395		Cooktop (stainless)		Appelez-nous	-
3	WP3195060		Pin, Hinge   (Replaces: 3195060)			Immediately	$ 13.18
4	WP3196557		Screw, Element   (Replaces: 3196169)			Immediately	$ 7.95
5	W10818314		Board, Display   (Replaces: W10390744)				$ 342.58
6	WPW10410579		Ui-g8 (hotplate (lr))   (Replaces: W10410579)				$ 270.34
7	WPW10410580		Ui-g8 (hotplate (lf & Rf))   (Replaces: W10410580)				$ 255.85
8	WPW10410578		Ui-g8 (hotplate (rr))   (Replaces: W10410578)				$ 308.23
