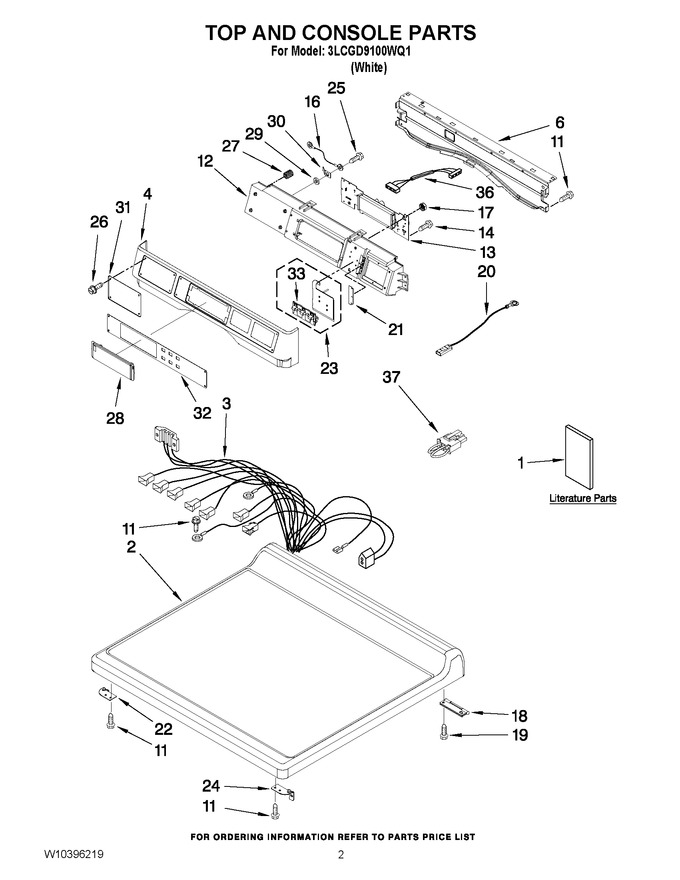

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10096909 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10306604 | Tech Sheet |
|
- | |||||
| 1 | W10310116 | User Instruction |
|
- | |||||
| 1 | W10310126 | Installation Instruction |
|
- | |||||
| 2 | W11622909 | Top (Replaces: W10137410) |
|
- | |||||
| 3 | W10386327 | Harness, Main |
|
- | |||||
| 4 | W10779120 | Console (outer) (Replaces: W10137459) |
|
$ 138.64 | |||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 189.77 | |||||
| 11 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 8.11 | |||||
| 12 | W11790400 | Console (inner) (Replaces: W10137427) |
|
- | |||||
| 13 | WPW10166346 | User-interface Assembly (Replaces: W10166346) |
|
$ 328.95 | |||||
| 14 | 489136 | Screw, 3-24 X 1/32 |
|
$ 10.80 | |||||
| 16 | W10188087 | Ground Wire Assembly |
|
- | |||||
| 17 | WPW10139046 | Nut, 6-32 (Replaces: W10139046) |
|
$ 9.23 | |||||
| 18 | WP8565018 | Hinge & Pin Assembly (Replaces: 8565018) |
|
$ 115.34 | |||||
| 19 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 20 | W10257051 | Jumper, Static |
|
- | |||||
| 21 | W10187276 | Seal-console |
|
- | |||||
| 22 | W10137445 | Bracket, Top Panel (left) |
|
- | |||||
| 23 | WPW10135255 | Assembly, Membrane Switch & Backer Plate (Replaces: W10135255) |
|
$ 219.41 | |||||
| 24 | W10137444 | Bracket, Top Panel (right) |
|
- | |||||
| 25 | WP488234 | Screw, 8-32 X 1/4 (Replaces: 488234) |
|
$ 7.08 | |||||
| 26 | WPW10137457 | Screw, 8-32 X 3/64 (Replaces: W10137457) |
|
$ 7.85 | |||||
| 27 | WPW10189313 | Insert (8) (Replaces: W10189313) |
|
$ 9.23 | |||||
| 28 | W11637765 | Display Cover (Replaces: W10267645) |
|
$ 69.59 | |||||
| 29 | W10189075 | Washer, Brass |
|
$ 19.13 | |||||
| 30 | 3373818 | Tab-grounding |
|
- | |||||
| 31 | W10348373 | Facia-dispenser |
|
- | |||||
| 32 | W10348376 | Facia-console |
|
- | |||||
| 33 | W10803340 | Push Button (Replaces: W10137455) |
|
$ 123.24 | |||||
| 36 | W10166307 | Harness, Communication |
|
$ 41.32 | |||||
| 37 | W11129439 | Switch Jumper, Service/vault (Replaces: W10133282) |
|
$ 17.66 |
