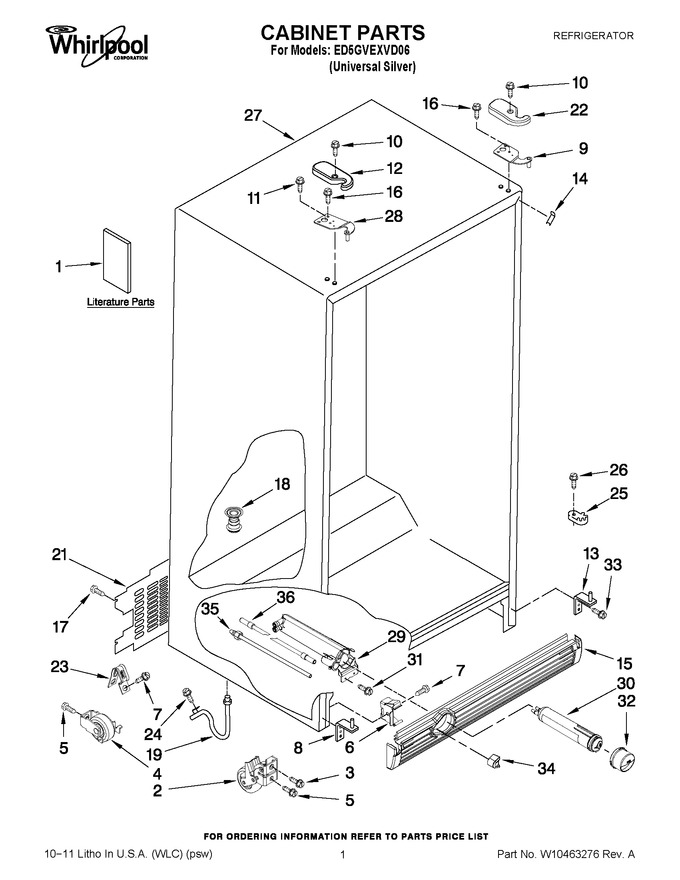

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10296167 | Energy Guide |
|
- | |||||
| 1 | W10305231 | Instruction Sheet, Door Removal |
|
- | |||||
| 1 | 628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | W10316634 | Use & Care Guide |
|
- | |||||
| 1 | W10158909 | Service & Wiring Sheet |
|
- | |||||
| 2 | 2174748 | Front Roller |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 12.98 | |||||
| 4 | WPW10250570 | Roller (rear) (Replaces: W10250570) |
|
$ 37.96 | |||||
| 5 | WP489427 | Screw (Replaces: W10146358) |
|
$ 7.06 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.30 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 8 | W10219817 | Adjustable Hinge Cam Assy |
|
- | |||||
| 9 | W10242649 | Hinge Top Rc |
|
- | |||||
| 10 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 9.86 | |||||
| 11 | WP489128 | Screw (Replaces: 8281149) |
|
$ 10.26 | |||||
| 12 | WP2203407B | Hinge Cover Fc (Replaces: 2203407B) |
|
$ 18.45 | |||||
| 13 | W10138965 | Hinge Bottom |
|
$ 84.52 | |||||
| 14 | 2304848 | Filler, Wrapper |
|
- | |||||
| 15 | WPW10311033 | Grille (Replaces: W10311033) |
|
$ 166.42 | |||||
| 16 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 17 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 18 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 48.11 | ||||
| 19 | W11512417 | Extension Tube (Replaces: W10153550) |
|
$ 32.88 | |||||
| 21 | WP2188755 | Cover, Unit (Replaces: 2188735) |
|
$ 128.44 | |||||
| 22 | WP2203408B | Hinge Cover Rc (Replaces: 2203408B) |
|
$ 17.60 | |||||
| 23 | 549193 | Clamp, Service Cord |
|
$ 12.65 | |||||
| 24 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.54 | ||||
| 25 | WPW10329686 | Door Closer, Lower Cam (Replaces: 2155311) |
|
Immediately | $ 5.31 | ||||
| 26 | WP489483 | Screw (Replaces: 489483) |
|
$ 10.27 | |||||
| 27 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 28 | W10242650 | Hinge Top, Fc |
|
- | |||||
| 29 | W10121143 | Housing, Water Filter |
|
- | |||||
| 30 | EDR3RXD1B | Water Filter (Replaces: 4396841) |
|
Immediately | $ 49.99 | ||||
| 31 | WP489500 | Screw (Replaces: 489500) |
|
$ 7.35 | |||||
| 32 | WP2260518B | Cap, Water Filter (Replaces: 2260502B) |
|
Immediately | $ 30.56 | ||||
| 33 | WP489497 | Screw (Replaces: W10142235) |
|
Immediately | $ 26.18 | ||||
| 34 | WP2260503B | Button, Filter (Replaces: 2260503B) |
|
$ 68.78 | |||||
| 35 | WPW10350006 | Tube, Filter Outlet (Replaces: W10330344) |
|
$ 109.19 | |||||
| 36 | W10281289 | Tube, Filter Inlet |
|
$ 57.80 |
