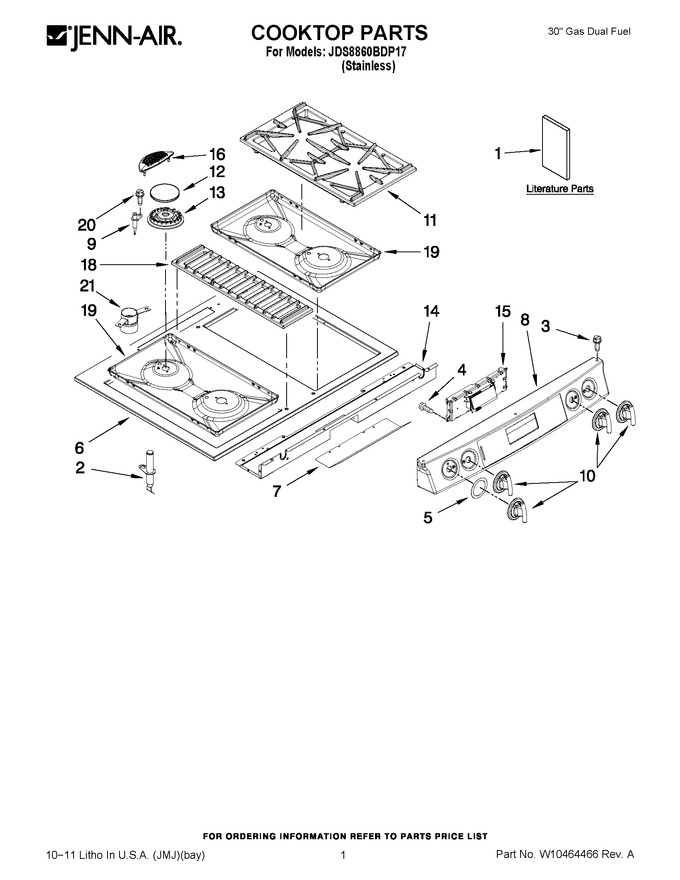

01 - Cooktop Parts
02 - Door Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10065852 | Owners Manual Brochure, Tips (safe Cooking) (french) |
|
- | |||||
| 1 | 8113P750-60 | Owners Manual Brochure, Tips (safe Cooking) |
|
- | |||||
| 1 | 9762761 | Owners Manual Brochure, Tips (safe Cooking) (english) |
|
- | |||||
| 1 | W10394679 | Diagram, Wiring |
|
- | |||||
| 1 | 8101P698-60 | Installation, Instructions |
|
- | |||||
| 2 | WP74009336 | Ignitor, Dual (Replaces: 7432P121-60) |
|
Immediately | $ 27.00 | ||||
| 3 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 4 | WP59002061 | Screw (Replaces: 7101P077-60) |
|
$ 8.18 | |||||
| 5 | 74011689 | Bezel, Dual (Replaces: 7740P165-60) |
|
$ 78.56 | |||||
| 5 | 74011690 | Bezel. Simmer (Replaces: 7740P166-60) |
|
$ 157.35 | |||||
| 5 | 7740P167-60 | Bezel, Prostyle |
|
$ 25.90 | |||||
| 6 | W10331863 | Cooktop |
|
- | |||||
| 7 | 3604F426-51 | Insulator, Control Shield |
|
$ 49.57 | |||||
| 8 | 7721P592-60 | Panel, Control W/ Membrane Switch |
|
$ 290.10 | |||||
| 9 | WP74009336 | Ignitor (3) (Replaces: 7432P121-60) |
|
Immediately | $ 27.00 | ||||
| 10 | WPW10175695 | Knobs (Replaces: W10175695) |
|
Immediately | $ 28.92 | ||||
| 11 | 7518P359-60 | Grate, Burner (2) |
|
$ 90.75 | |||||
| 12 | WP8284669 | Cap, Burner (5k) (Replaces: 7504P202-60) |
|
Immediately | $ 75.59 | ||||
| 12 | 7504P242-60 | Cap, Burner (inner, Dual) |
|
- | |||||
| 12 | 7504P243-60 | Cap, Burner (outer, Dual) |
|
- | |||||
| 12 | 7504P165-60 | Cap, Burner (12.5k) |
|
- | |||||
| 12 | 7504P204-60 | Cap, Burner (15k) |
|
- | |||||
| 13 | 74007735 | Burner, Assembly (12.5k, Rr) (Replaces: 7505P305-60) |
|
Immediately | $ 114.18 | ||||
| 13 | 7505P349-60 | Burner, Assembly (dual, Lf) |
|
- | |||||
| 13 | 74007736 | Burner, Assembly (15k, Rf) (Replaces: 7505P306-60) |
|
Immediately | $ 117.07 | ||||
| 13 | 74007734 | Burner, Assembly (5k, Lr) (Replaces: 7505P304-60) |
|
$ 125.76 | |||||
| 14 | 3807F738-51 | Support, Cntl Pnl |
|
- | |||||
| 15 | WP8507P334-60 | Control, (erc) (Replaces: 8507P334-60) |
|
$ 482.28 | |||||
| 16 | 7744P464-60 | Trim, Vent |
|
$ 85.09 | |||||
| 18 | 7518P367-60 | Grate, Center |
|
$ 244.23 | |||||
| 19 | 3424F034-09 | Bowl, Drip (pan, Medium) |
|
$ 36.78 | |||||
| 19 | 3424F037-09 | Bowl, Drip (pan, Dual Burner) |
|
$ 26.37 | |||||
| 20 | WP8273062 | Screw, Ignitor (Replaces: 7101P606-60) |
|
Immediately | $ 7.91 | ||||
| 21 | W10233479 | Tube, Vent |
|
$ 74.82 |
