SELECT A DIAGRAM

01 - Cooktop Parts


02 - Blower Unit Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer And Rack Parts


08 - Optional Parts (not Included)

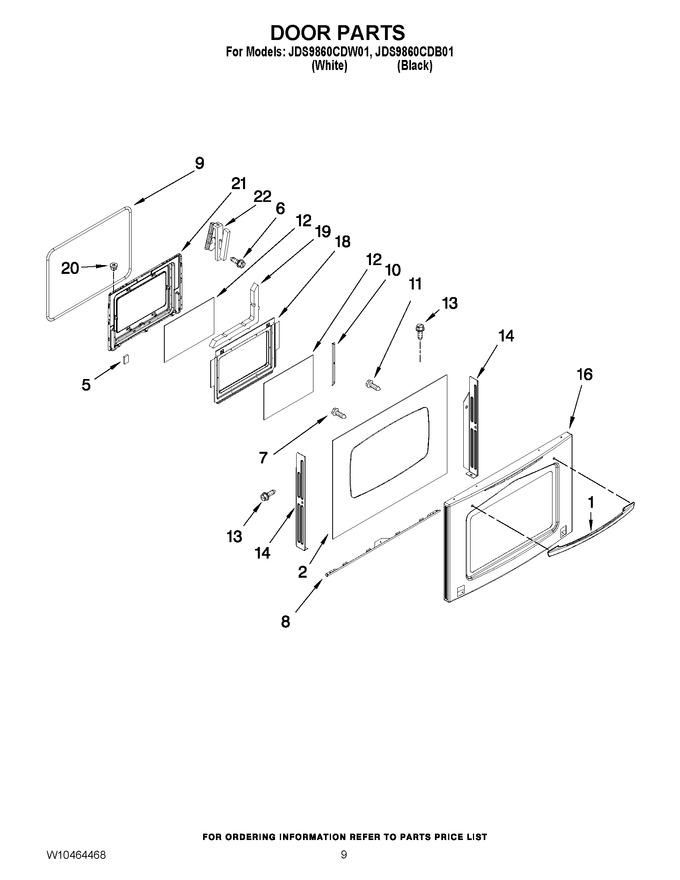

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10223163		Handle, Door (black)		Appelez-nous	-
1	W10223164		Handle, Door (white)				$ 274.32
2	W10272330		Glass, Door (white)				$ 265.49
2	WPW10272332		Glass, Door (black)   (Replaces: W10272332)				$ 315.91
5	7109P082-60		Spacer, Rubber		Appelez-nous	-
6	WP3400029		Screw,(10abx1/4p)   (Replaces: 7103P176-60)			Immediately	$ 8.19
7	WP90767		Screw, Handle   (Replaces: 7101P426-60)			Immediately	$ 8.25
8	W10331048		Support, Glass		Appelez-nous	-
9	WPW10162384		Gasket, Door   (Replaces: W10162384)			Immediately	$ 86.23
10	3801F886-51		Bracket, Glass				$ 38.25
11	W11347848		Screw   (Replaces: 7101P376-60)				$ 14.23
12	74003645		Glass, Inner (2)   (Replaces: 7902P436-60)			Immediately	$ 180.59
13	WP98008545		Screw   (Replaces: 7101P633-60)				$ 18.60
14	3608F138-71		Trim, Door				$ 34.76
16	3603F075-71		Frame, Door (white)				$ 390.67
16	3603F075-70		Frame, Door (black)				$ 187.06
18	3601F373-51		Baffle, Door				$ 284.93
19	7002P246-60		Insulation, Door				$ 58.49
20	WP74001574		Nut, Snap (black)   (Replaces: 7103P141-60)			Immediately	$ 11.74
20	WP7103P114-60		Nut, Snap (white)   (Replaces: 7103P039-60)				$ 11.69
21	2402W312-19		Lining, Door				$ 144.50
22	74011475		Hinge, Door (2)   (Replaces: 7106P143-60)			Immediately	$ 130.52

    View Diagram in Separate Window       Print Part List
