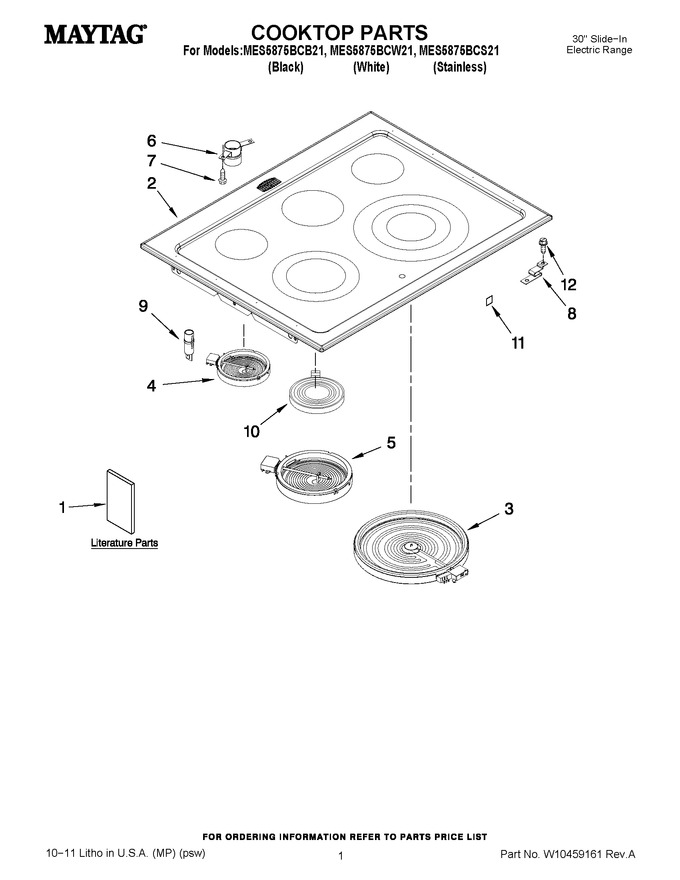

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8113P771-60 | Use & Care Guide |
|
- | |||||
| 1 | 8101P716-60 | Installation Instructions |
|
- | |||||
| 1 | W10394702 | Wiring Diagram (english) |
|
- | |||||
| 1 | W10394704 | Wiring Diagram (french) |
|
- | |||||
| 1 | 9762761 | Brochure, Tips Safer Cooking (english) |
|
- | |||||
| 1 | W10065852 | Brochure, Tips Safer Cooking (french) |
|
- | |||||
| 2 | 5706X559-81 | Cooktop (white) |
|
$ 542.47 | |||||
| 2 | 5706X538-09 | Cooktop (black) |
|
$ 1,167.30 | |||||
| 2 | 5706X538-50 | Cooktop (stainless) |
|
$ 742.31 | |||||
| 3 | W11101459 | Element (rf) (2700w (triple)) (Replaces: W10259005) |
|
Immediately | $ 215.72 | ||||
| 4 | W11171119 | Element (lr/rr), 1200w (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 5 | WPW10275049 | Element (lf) (2500/1200w (dual)) (Replaces: W10275049) |
|
Immediately | $ 314.23 | ||||
| 6 | W10233479 | Tube, Vent Upper |
|
$ 74.82 | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 8 | 8004P093-60 | Support, Element |
|
$ 10.61 | |||||
| 9 | 7407P193-60 | Light, Indicator |
|
$ 77.76 | |||||
| 10 | WP9762851 | Element, Warm Zone (Replaces: 9762851) |
|
Immediately | $ 290.36 | ||||
| 11 | 8010P152-60 | Spacer, Rubber |
|
- | |||||
| 12 | WP7101P498-60 | Screw (Replaces: 7101P498-60) |
|
$ 7.86 |
