SELECT A DIAGRAM

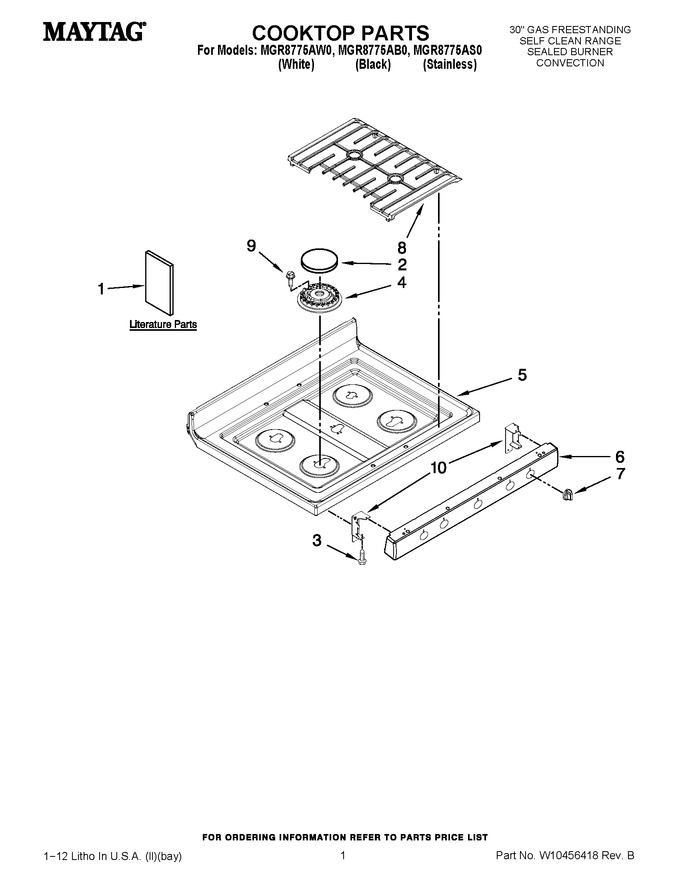

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Internal Oven Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10392962		Wiring Diagram (english)		Appelez-nous	-
1	W10400066		Quick Start Guide (english)		Appelez-nous	-
1	W10400067		Quick Start Guide (french)		Appelez-nous	-
1	W10399029		Owners Manual		Appelez-nous	-
1	W10403810		Installation Instructions		Appelez-nous	-
1	W10392950		Wiring Diagram (french)		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2	WPW10183374		Cap, Burner (set)   (Replaces: W10183374)				$ 200.18
3	WPW10067840		Screw   (Replaces: W10067840)				$ 8.30
4	WPW10406243		Burner (lr)   (Replaces: 8286181)			Immediately	$ 39.08
4	WPW10406878		Burner (rf & Lf)   (Replaces: 8286183)				$ 107.48
4	WPW10406283		Burner (rr & Center)   (Replaces: W10194076)				$ 78.02
5	W10366729		Cooktop (white)		Appelez-nous	-
5	W10366730		Cooktop (black)		Appelez-nous	-
6	W10441312		Panel, Manifold (white)				$ 135.63
6	W10441313		Panel, Manifold (black)		Appelez-nous	-
6	W10441315		Panel, Manifold (stainless)		Appelez-nous	-
7	WPW10370188		Knob, Control (black)   (Replaces: W10370188)				$ 20.79
7	WPW10370187		Knob, Control (white)   (Replaces: W10370187)				$ 21.53
7	WPW10370189		Knob, Control (stainless)   (Replaces: W10370189)			Immediately	$ 37.51
8	W11381652		Grate, Burner (set)   (Replaces: W10451804)				$ 387.72
9	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
10	W10106419		Bracket, Manifold (right)		Appelez-nous	-
10	W10289096		Bracket, Manifold (left)				$ 153.90

    View Diagram in Separate Window       Print Part List
