SELECT A DIAGRAM

01 - Cooktop Parts

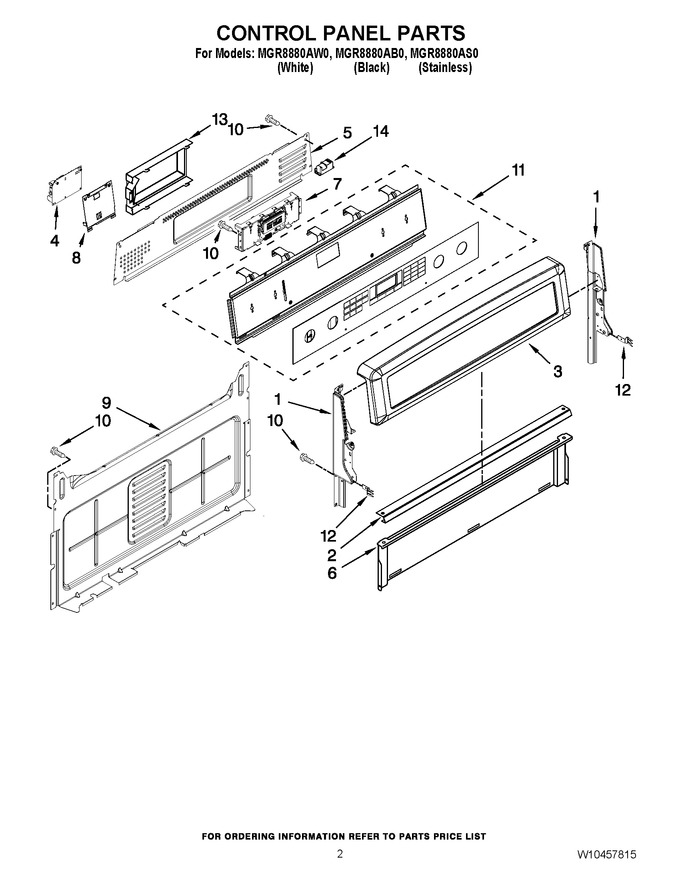

02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Internal Oven Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap, Left Hand (white)   (Replaces: W10184433)				$ 42.45
1	W11219664		Endcap, Left Hand (black)   (Replaces: W10184437)				$ 153.83
1	W11219370		Endcap, Right Hand (white)   (Replaces: W10184434)				$ 60.83
1	W11219665		Endcap, Right Hand (black)   (Replaces: W10184438)				$ 45.17
2	W10211996		Bracket, Console		Appelez-nous	-
3	W10097310		Console (stainless)				$ 116.84
3	W10097280		Console (black)				$ 119.25
3	W10097270		Console (white)				$ 118.50
4	WPW10331686		Module, Spark   (Replaces: W10331686)			Immediately	$ 393.86
5	W10198745		Cover, Upper				$ 128.90
6	W10192841		Shield, Heat				$ 106.69
7	WPW10340325		Control, Mrc   (Replaces: W10340325)				$ 472.01
8	W10167573		Bracket, Dsi		Appelez-nous	-
9	W10184251		Cover, Main Wire		Appelez-nous	-
10	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
11	W10339439		Assembly, Active Overlay (black)		Appelez-nous	-
11	W10339438		Assembly, Active Overlay (white)		Appelez-nous	-
11	W10339440		Assembly, Active Overlay (stainless)				$ 253.71
12	8523412		Bracket, Rear				$ 167.90
13	W10158780		Cover, Fan (rear)				$ 118.48
14	8522425		Module, Spark				$ 122.75
NI	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26

    View Diagram in Separate Window       Print Part List
