SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)

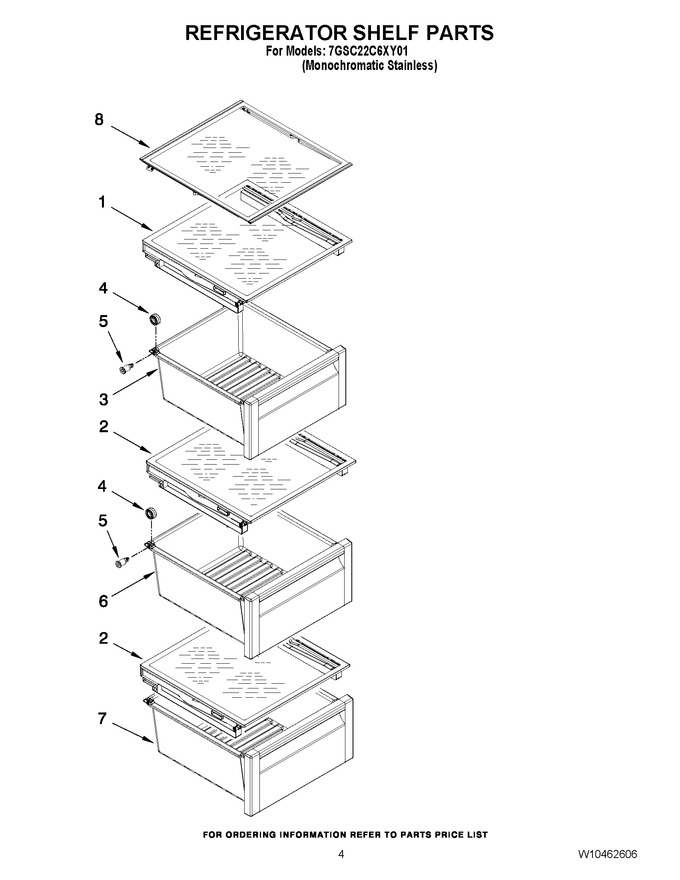

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10290870		Shelf, Snack Pan				$ 285.68
2	W11214973		Cover, Assy   (Replaces: W10290879)				$ 172.46
3	W10446644		Snack Pan Also Order 4 & 5   (Replaces: W10325538)		Appelez-nous	-
4	W11164152		Roller   (Replaces: W10278139)			Immediately	$ 15.74
5	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54
6	W11672777		Crisper Pan Also Order 4 & 5   (Replaces: W10325539)		Appelez-nous	-
7	W10446646		Meat Pan Also Order 4 & 5   (Replaces: W10325540)				$ 241.64
8	WPW10269156		Shelf Assy   (Replaces: W10269156)				$ 159.82

    View Diagram in Separate Window       Print Part List
