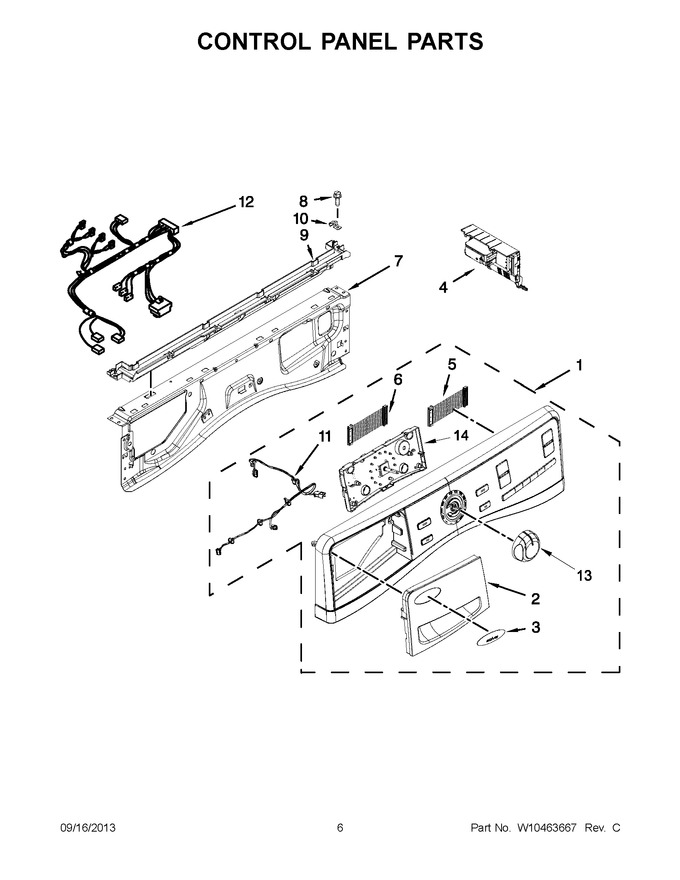

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10429158		Console Asssembly (red)		Appelez-nous	-
2	W10411194		Handle, Dispenser Drawer (red)		Appelez-nous	-
3	W10411195		Badge		Appelez-nous	-
4	W10435468		Control Unit, Central		Appelez-nous	-
5	W10267937		Harness, Jumper		Appelez-nous	-
6	W10267938		Harness, Jumper Ui		Appelez-nous	-
7	W10208197		Bracket, Console				$ 166.23
8	WP489464		Screw   (Replaces: W10142290)			Immediately	$ 7.83
9	WPW10653575		Channel, Water   (Replaces: W10317570)				$ 86.61
10	W10317566		Clip, Spring				$ 8.72
11	W10271989		Harness, Main Ui				$ 239.00
12	W10432027		Harness, Wiring (upper Main)		Appelez-nous	-
13	WPW10251394		Assembly, Control Knob (chrome)   (Replaces: W10251394)				$ 53.28
14	W10368101		Ui, Center (includes Knob)		Appelez-nous	-
