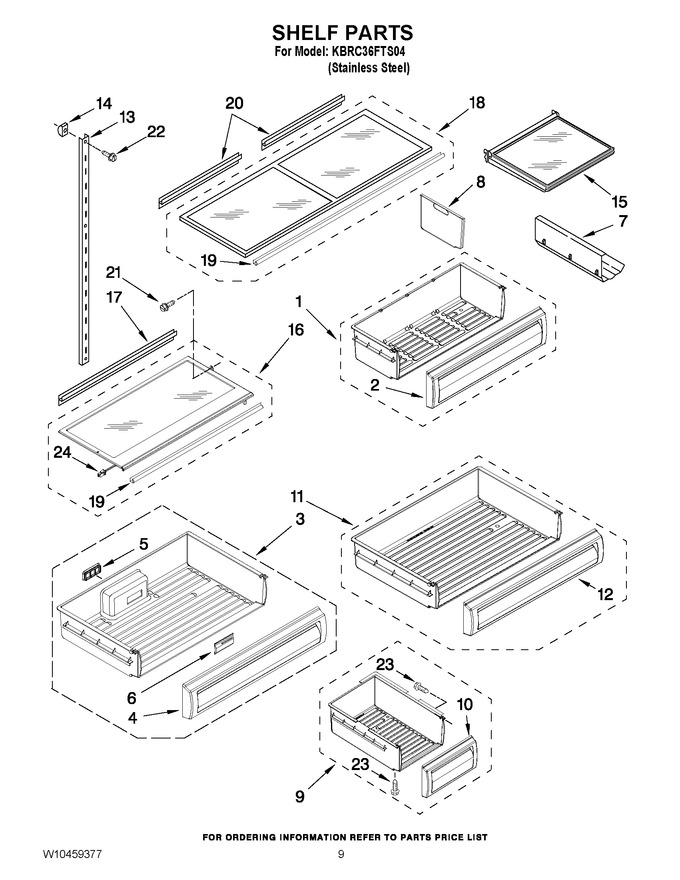

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2256375		Crisper Pan Assy (includes Item 2)   (Replaces: W10407629)				$ 397.25
2	2256374		Front, Crisper Pan		Appelez-nous	-
3	W10407636		Deli Pan Assembly (includes Items 4, 5 & 6)		Appelez-nous	-
4	2257548		Front, Deli Pan				$ 165.49
5	2307810		Duct, Deli Pan		Appelez-nous	-
6	2317939		Air Deflector		Appelez-nous	-
7	W10777924		Rack, Wine   (Replaces: 2179404)				$ 24.78
8	2256474		Divider, Crisper Pan				$ 87.99
9	2306174		Ice Pan Assembly (includes Items 10 & 23)				$ 147.41
10	2306175		Front, Ice Pan				$ 95.96
11	2327512		Freezer Pan Assembly (includes Item 12)		Appelez-nous	-
12	2268383		Front, Freezer Pan		Appelez-nous	-
13	2327314		Ladder, Shelf		Appelez-nous	-
14	520965		Support, Ladder				$ 31.35
15	2309376		Shelf		Appelez-nous	-
16	2308605		Cover, Deli Bin (includes Items 19 & 24)		Appelez-nous	-
17	2309399		Gasket, Rear		Appelez-nous	-
18	2268413		Cover, Crisper		Appelez-nous	-
19	2309397		Gasket, Front (crisper Cover)		Appelez-nous	-
20	2309398		Gasket, Rear (deli Cover)		Appelez-nous	-
21	W10825422		Screw 8-15 X 1/2   (Replaces: 8281251)				$ 11.36
22	2006475		Screw 8-15 X 1-3/8		Appelez-nous	-
23	WP488787		Screw 8-18 X 1/2   (Replaces: 488886)				$ 11.26
24	2309393		Light Assy, (deli)		Appelez-nous	-
