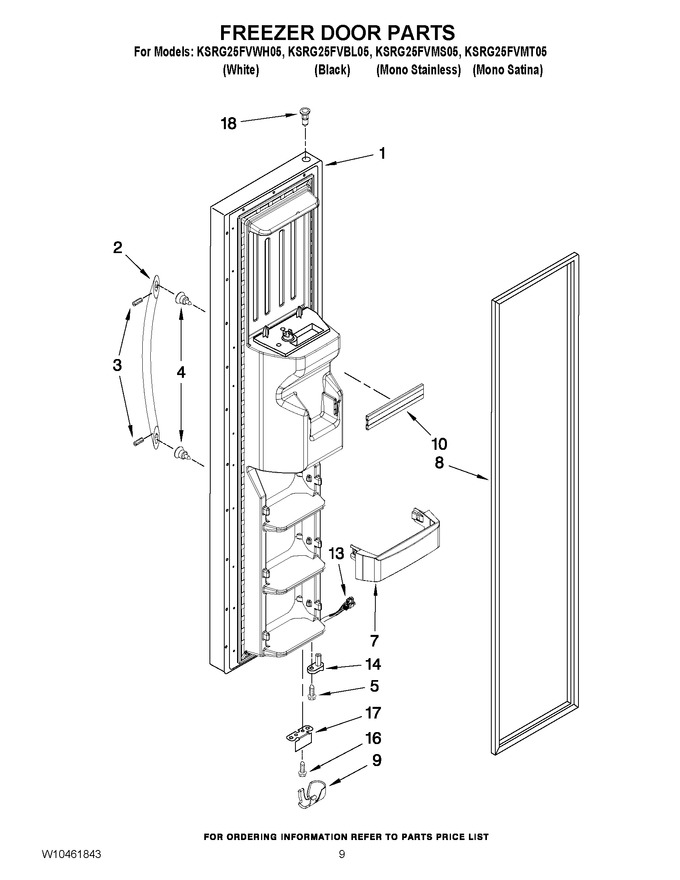

06 - Freezer Door Parts


07 - Dispenser Front Parts


08 - Air Flow Parts


09 - Control Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Motor And Ice Container Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10214271W		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10214271B		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10318285		Freezer Door (includes No.8 And Dispenser Front Parts) (mono Stainless)		Appelez-nous	-
1	W10214271LG		Freezer Door (includes No.8 And Dispenser Front Parts) (mono Satina)		Appelez-nous	-
2	2319727W		Handle (white)				$ 106.80
2	2319727B		Handle (black)				$ 109.87
2	2319727S		Handle (stainless)				$ 133.96
3	W11366418		Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
4	WPW10170540		Stud   (Replaces: W10170540)			Immediately	$ 8.51
5	WP3400012		Screw   (Replaces: W10142285)				$ 7.82
7	WP2171157		Shelf Bin   (Replaces: 2171157)				$ 60.67
8	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326339)				$ 254.84
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
8	2159074		Door Gasket, Magnetic (mist)   (Replaces: 2221303)				$ 310.19
9	2323581		Thimble Cover		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: W10307494)			Immediately	$ 23.11
13	WPW10193328		Wire Harness   (Replaces: W10193328)				$ 127.80
14	2323535		Door Closer, Upper Cam				$ 33.97
16	WPW10142233		Screw   (Replaces: W10142233)				$ 8.39
17	W10219799		Bracket, Door Stop (chrome)		Appelez-nous	-
18	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
