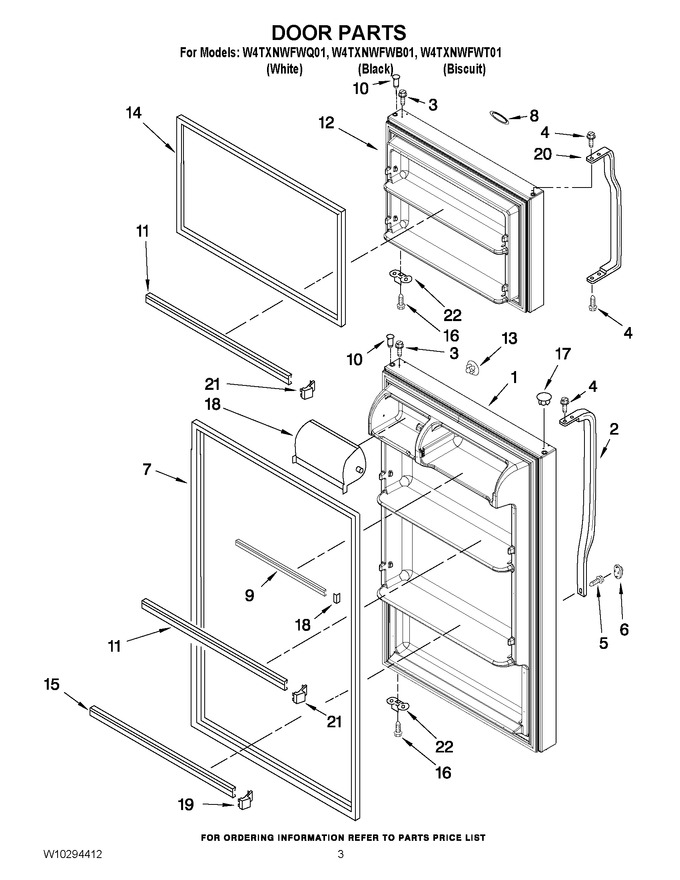

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | L2316022T | Refrigerator Door Includes (7 & 10) (biscuit) (Replaces: 2316022T) |
|
- | |||||
| 1 | 2316022W | Refrigerator Door Includes (7 & 10) (white) |
|
- | |||||
| 1 | LW10287926 | Refrigerator Door Includes (7 & 10) (black) (Replaces: W10287926) |
|
- | |||||
| 2 | WP2221946W | Handle, Refrigerator (bow) (white) (Replaces: 2221946W) |
|
Immediately | $ 130.11 | ||||
| 2 | WP2221946T | Handle, Refrigerator (bow) (biscuit) (Replaces: 2221946T) |
|
$ 152.26 | |||||
| 2 | WP2326169B | Handle, Refrigerator (bow) (black) (Replaces: 2326169B) |
|
$ 154.75 | |||||
| 3 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 5 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 6 | 2202819T | Cover, Screw (biscuit) |
|
$ 8.02 | |||||
| 6 | WP2202819W | Cover, Screw (white) (Replaces: 2202819W) |
|
Immediately | $ 8.14 | ||||
| 6 | WP2202819B | Cover, Screw (black) (Replaces: 2202819B) |
|
$ 11.43 | |||||
| 7 | WP2319265T | Door Gasket, Magnetic (mist Beige) (Replaces: W10190033) |
|
Immediately | $ 184.89 | ||||
| 7 | 2319265B | Door Gasket, Magnetic (black) (Replaces: 2264724) |
|
$ 329.50 | |||||
| 8 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 93.18 | ||||
| 9 | W11129820 | Trim, Door Shelf (Replaces: W10234242) |
|
Immediately | $ 127.34 | ||||
| 10 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 8.14 | |||||
| 11 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 92.50 | ||||
| 12 | LW10287928 | Freezer Door Includes (10 & 14) (black) (Replaces: W10287928) |
|
- | |||||
| 12 | 2316021W | Freezer Door Includes (10 & 14) (white) |
|
- | |||||
| 12 | L2316021T | Freezer Door Includes (10 & 14) (biscuit) (Replaces: 2316021T) |
|
- | |||||
| 13 | WP2200936 | Hole Plug, Handle (biscuit) (Replaces: 2200936) |
|
$ 7.97 | |||||
| 13 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 13 | WP2189009 | Hole Plug, Handle (black) (Replaces: 2189009) |
|
$ 7.61 | |||||
| 14 | WP2319263B | Door Gasket, Magnetic (black) (Replaces: 2264722) |
|
Immediately | $ 268.28 | ||||
| 14 | WP2319263T | Door Gasket, Magnetic (black) (Replaces: W10190031) |
|
Immediately | $ 169.53 | ||||
| 15 | WP2266738 | Trim, Door Shelf (Replaces: 2266738) |
|
$ 111.69 | |||||
| 16 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 17 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 17 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 17 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 7.99 | |||||
| 18 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 58.76 | ||||
| 19 | WP2195916K | Plug-trim (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 20 | WP2202098 | Handle, Freezer (bow) (white) (Replaces: 2202098) |
|
$ 156.82 | |||||
| 20 | 2202098B | Handle, Freezer (bow) (black) |
|
$ 151.23 | |||||
| 20 | WP2215015 | Handle, Freezer (bow) (biscuit) (Replaces: 2215015) |
|
$ 153.23 | |||||
| 21 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 22 | 2217944 | Bracket, Door Stop |
|
$ 26.55 |
