Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11661174 Dishrack, Upper   (Replaces: W10194864) Special Order $ 197.59

2 W10418310 Mount, Wheel Fixed, 2-position Special Order $ 27.72

3 W10238406 Clip, No-flip Special Order $ 9.20

4 W10056298 Handle, Rear Appelez-nous -
5 WPW10267076 Clip, Dispenser Guard   (Replaces: W10267076) Special Order $ 31.56

6 WPW10195623 Track, Assembly   (Replaces: W10195623) In-Stock Immediately $ 53.37

7 W10587967 Handle, Front   (Replaces: W10056297) Appelez-nous -
8 WPW10195622 Stop, Track Non-removable   (Replaces: W10195622) In-Stock Immediately $ 10.81


    View Diagram in Separate Window     Print Icon   Print Part List

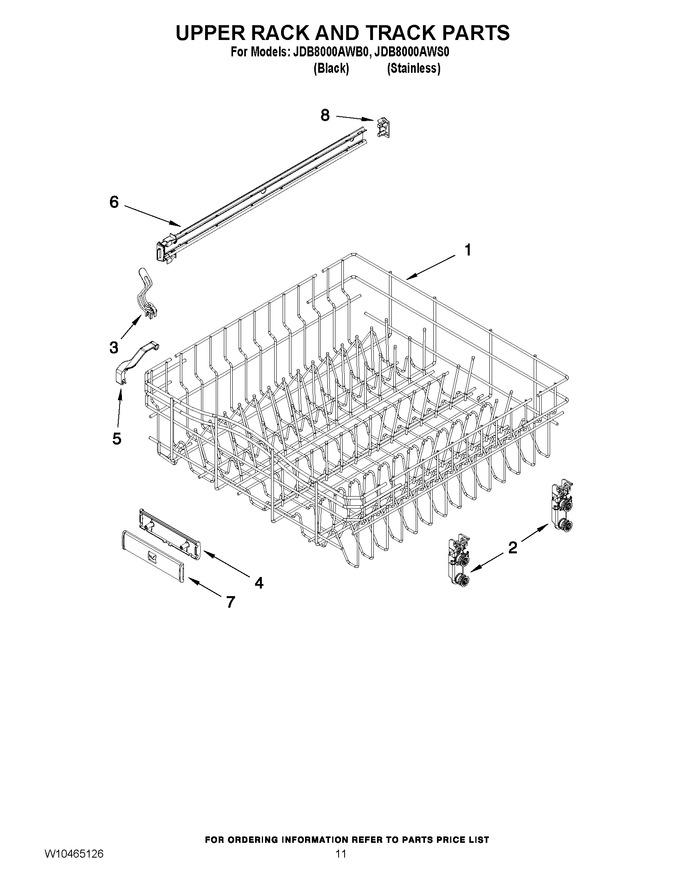

Diagram for JDB8000AWS0
