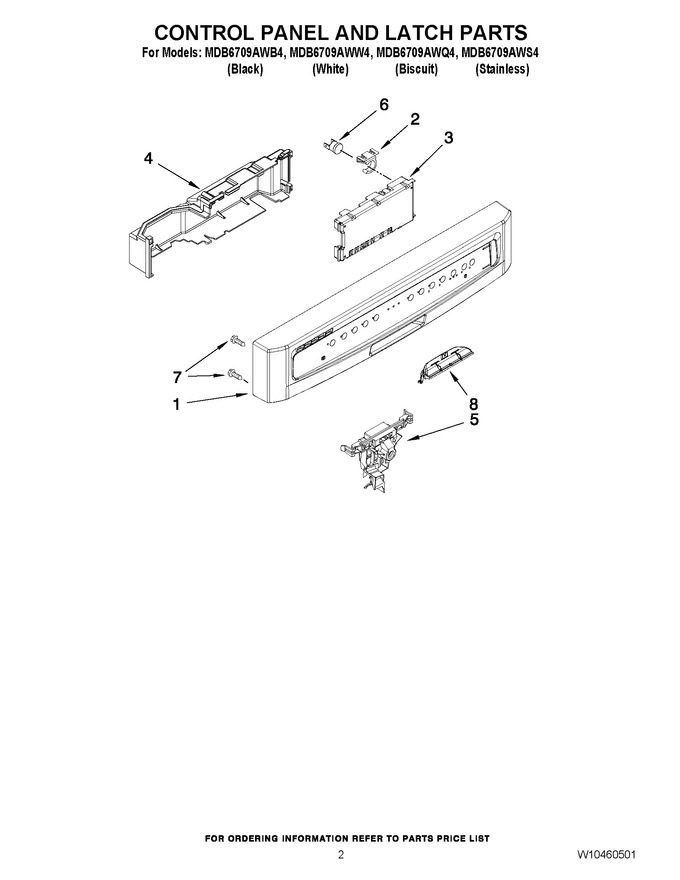

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10811152		Console (includes Active Overlay & Insert) (black)   (Replaces: W10240046)				$ 429.37
1	W10811153		Console (includes Active Overlay & Insert) (white)   (Replaces: W10240047)				$ 429.68
1	W10811154		Console (includes Active Overlay & Insert) (biscuit)   (Replaces: W10240048)				$ 439.54
2	8546546		Clip, Bi-metal				$ 7.82
3	W11202745		Control Electronic   (Replaces: W10298355)				$ 151.39
4	W10158350		Cover, Control Assembly				$ 26.50
5	WPW10404409		Latch Assembly   (Replaces: W10404409)				$ 186.04
6	W10258275		Bi-metal   (Replaces: W10344801)			Immediately	$ 41.71
7	WP304231		Screw   (Replaces: 304231)			Immediately	$ 8.14
8	W10205889		Handle, Latch (black)				$ 49.75
8	WPW10205890		Handle, Latch (white)   (Replaces: W10205890)				$ 126.51
8	W10859807		Handle, Latch (biscuit)   (Replaces: W10205891)				$ 135.21
