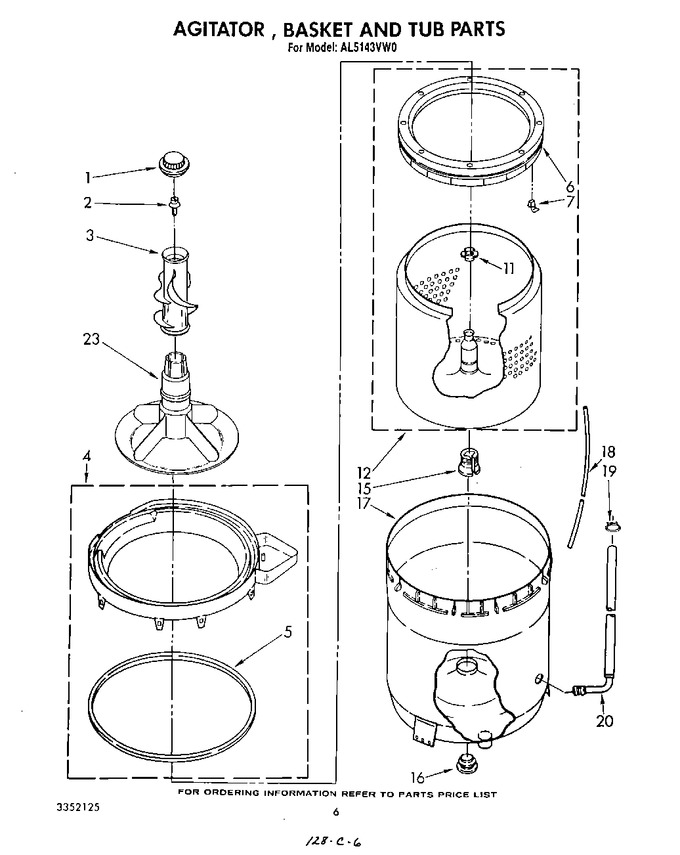

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 3352098) |
|
Immediately | $ 9.00 | ||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 8.86 | ||||
| 3 | WP63753 | Filter, Manual (Replaces: 3352105) |
|
$ 217.73 | |||||
| 4 | 387966 | Tub Ring & Gasket |
|
- | |||||
| 5 | WP3359586 | Gasket, Tub Ring (Replaces: 63222) |
|
$ 90.12 | |||||
| 6 | WP8519815 | Clip, Balance Ring (8) (Replaces: 387867) |
|
$ 8.34 | |||||
| 7 | 387868 | Balance Ring |
|
- | |||||
| 11 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.89 | ||||
| 12 | 387713 | Basket & Balance Ring (includes Illus. 6) |
|
- | |||||
| 15 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 16 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 9.18 | ||||
| 17 | 63039 | Tub |
|
- | |||||
| 18 | WP353244 | Hose, Pressure Switch (Replaces: 353406) |
|
Immediately | $ 59.93 | ||||
| 19 | WP596669 | Clamp, Hose (Replaces: 356436) |
|
Immediately | $ 8.40 | ||||
| 20 | 63323 | Hose, Bleach |
|
$ 60.00 | |||||
| 23 | 387838 | Agitator (Replaces: 3352103) |
|
$ 218.66 |
