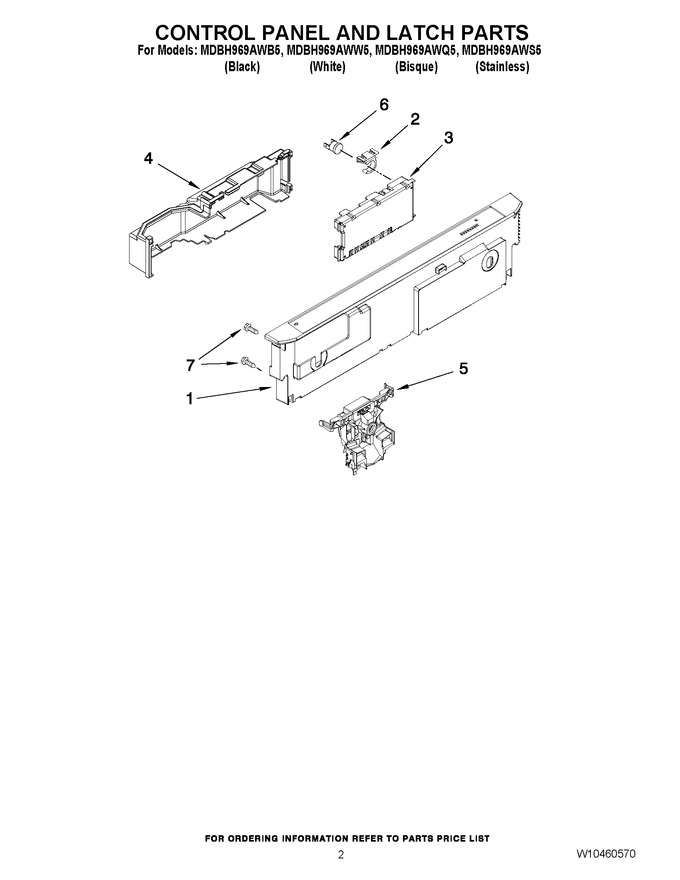

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10254839 | Console Assembly (includes Active Overlay & Insert) (black) (Replaces: W10240084) |
|
$ 414.12 | |||||
| 1 | W10240085 | Console Assembly (includes Active Overlay & Insert) (white) |
|
- | |||||
| 1 | W10240086 | Console Assembly (includes Active Overlay & Insert) (bisque) |
|
- | |||||
| 1 | WPW10254842 | Console Assembly (includes Active Overlay & Insert) (stainless) (Replaces: W10240087) |
|
$ 428.46 | |||||
| 2 | 8546546 | Clip, Bi-metal |
|
$ 7.82 | |||||
| 3 | WPW10285180 | Control Electronic (Replaces: W10285180) |
|
Immediately | $ 316.89 | ||||
| 4 | W10143018 | Cover, Control Assembly |
|
$ 54.68 | |||||
| 5 | WPW10404409 | Latch Assembly (Replaces: W10404409) |
|
$ 186.04 | |||||
| 6 | W10258275 | Bi-metal (Replaces: W10344801) |
|
Immediately | $ 41.71 | ||||
| 7 | WP304231 | Screw (Replaces: 304231) |
|
Immediately | $ 8.14 |
