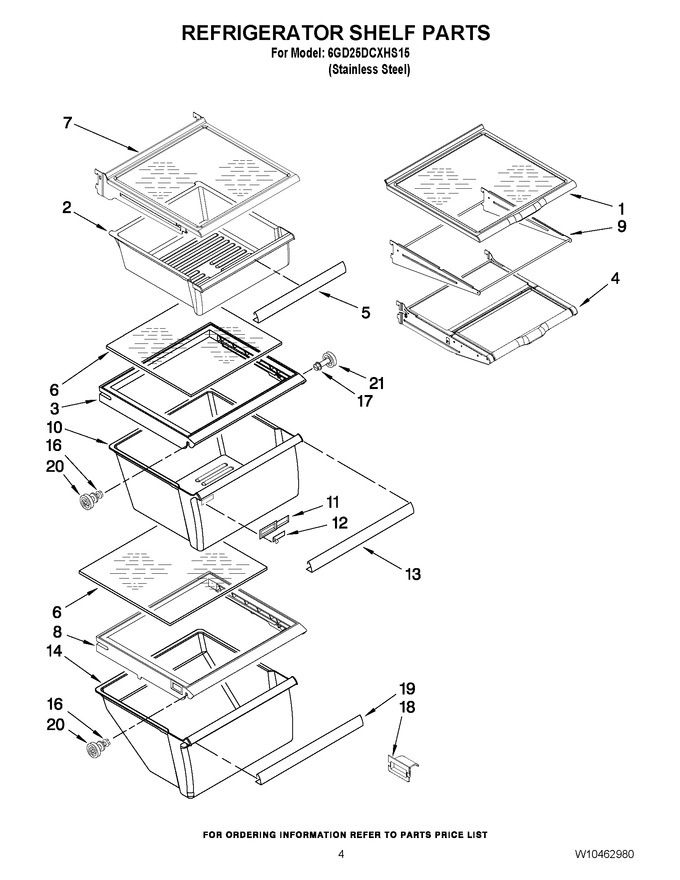

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141748 | Shelf Assembly, Glass Sliding (Replaces: W10141748) |
|
$ 357.65 | |||||
| 2 | W11497323 | Snack Bin (Replaces: 2188655) |
|
$ 234.84 | |||||
| 3 | W10508993 | Cover, Crisper (Replaces: 2209698) |
|
$ 305.85 | |||||
| 4 | 2317451 | Shelf Assembly, Flip Back |
|
- | |||||
| 5 | WP2179243 | Trim, Handle (Replaces: 2179243) |
|
$ 109.65 | |||||
| 6 | W10864399 | Glass Cover (Replaces: 2179259) |
|
$ 232.03 | |||||
| 7 | W10141750 | Shelf, Snack Bin |
|
$ 206.22 | |||||
| 8 | W10508993 | Cover, Meat Pan (includes Item 18) (Replaces: 2311726) |
|
$ 305.85 | |||||
| 9 | 2195975 | Frame, Shelf |
|
$ 84.01 | |||||
| 10 | WPW10178772 | Crisper Pan Assy (includes Items 11 & 12) (Replaces: W10178772) |
|
$ 165.31 | |||||
| 11 | WP2179343 | Body, Humidity Control (Replaces: 2179343) |
|
$ 34.02 | |||||
| 12 | WP2179342 | Slide, Humidity Control (Replaces: 2179342) |
|
$ 30.60 | |||||
| 13 | WP2179234 | Trim, Handle (Replaces: 2255593) |
|
$ 88.57 | |||||
| 14 | WP2188664 | Meat Pan (Replaces: 2188665) |
|
Immediately | $ 92.70 | ||||
| 16 | WP3-24004-109 | Screw 8-18 X 1-1/4 (Replaces: W10191954) |
|
$ 9.14 | |||||
| 17 | W10191952 | Screw 8-18 X 1-3/4 |
|
$ 5.65 | |||||
| 18 | 2179350 | Deflector |
|
$ 85.89 | |||||
| 19 | WP2179234 | Trim, Handle (Replaces: 2255592) |
|
$ 88.57 | |||||
| 20 | W11223328 | Stud Assembly (includes Item 16) (Replaces: W10173126) |
|
Immediately | $ 14.77 | ||||
| 21 | W11527119 | Stud Assembly (includes Item 17) (Replaces: W10173127) |
|
- |
