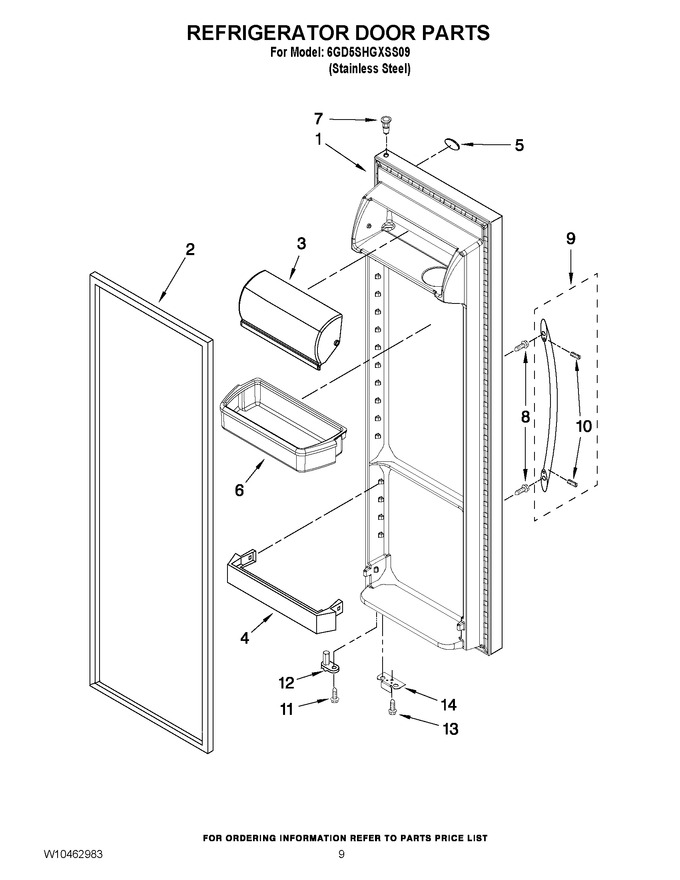

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10318335 | Refrigerator Door (includes Item 2) |
|
- | |||||
| 2 | 2159083 | Door Gasket Magnetic (Replaces: 2221313) |
|
$ 251.49 | |||||
| 3 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 4 | WP2156022 | Trivet, Shelf (Replaces: 2156022) |
|
Immediately | $ 72.80 | ||||
| 5 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 6 | W10254149 | Door Bin |
|
- | |||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 8 | WPW10170540 | Screw 8-18 X .785 (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 9 | 2319727S | Handle (includes Item 10) |
|
$ 133.96 | |||||
| 10 | W11366418 | Screw, Set 1/4-28 X .313 (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 11 | WP3400012 | Screw 10-32 X 1/2 (Replaces: W10142285) |
|
$ 8.26 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 13 | WPW10142233 | Screw 10-32 X 1/2 (Replaces: W10142233) |
|
$ 8.93 | |||||
| 14 | W10219812 | Bracket, Door Stop |
|
$ 24.48 |
