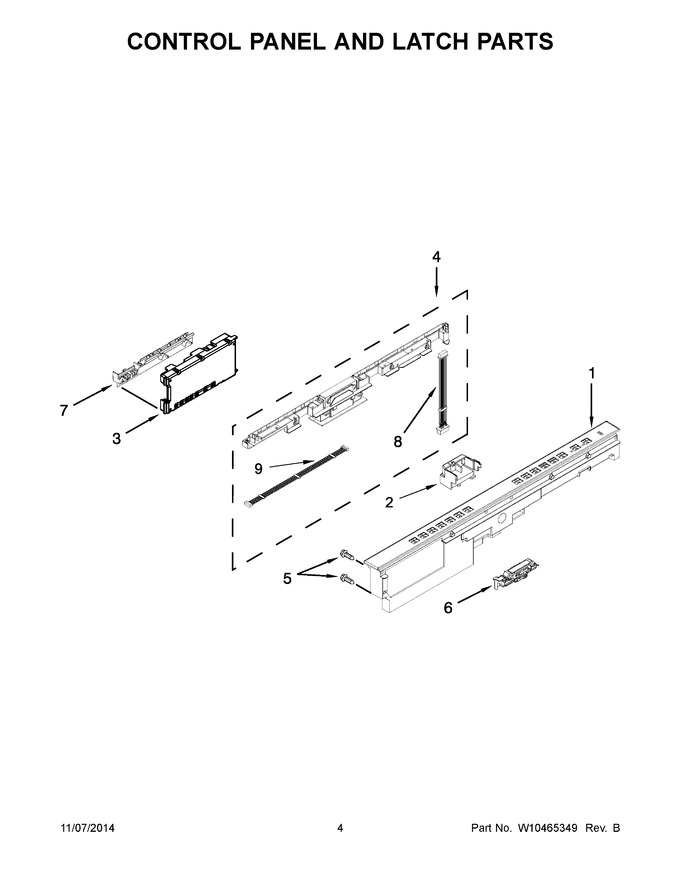

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10350250		Console Asm. (white)		Appelez-nous	-
2	W10783730		Box, Connector   (Replaces: W10401190)				$ 31.41
3	W10352587		Control, Electronic		Appelez-nous	-
4	W10350261		Housing, User Interface				$ 227.99
5	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 8.02
6	W10619006		Switch And Latch Assembly   (Replaces: W10370003)			Immediately	$ 39.09
7	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 30.56
8	W10300781		Jumper, 16-wire				$ 33.20
9	W10347251		Jumper, 10-wire				$ 11.62
1A	W10350251		Console Asm. (silver)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
