SELECT A DIAGRAM

01 - Cover Sheet

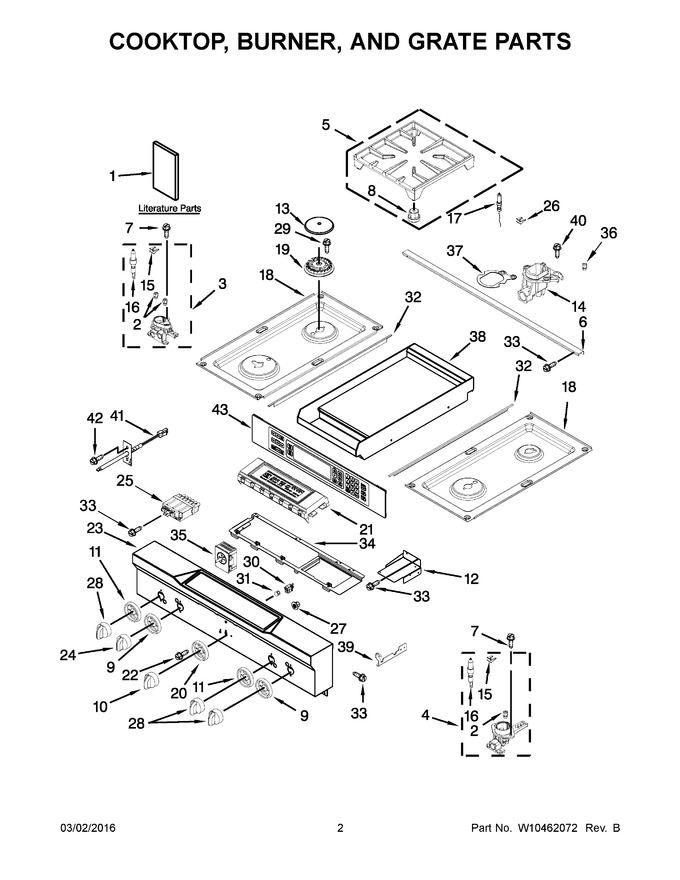

02 - Cooktop, Burner, And Grate Parts


03 - Burner Box Parts


04 - Chassis Parts


05 - Oven Parts


06 - Top Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403294		Sheet, Tech (english)		Appelez-nous	-
2	W10340424		Orifice (17k) (left Front, High)				$ 84.30
3	WPW10364555		Assembly, Orifice Holder (left Front)   (Replaces: W10364555)				$ 102.08
4	WPW10364556		Assembly, Orifice Holder (left Rear & Right Front)   (Replaces: W10364556)				$ 92.15
5	WPW10115928		Grate, Burner   (Replaces: W10115928)				$ 181.27
6	W10269217		Island, Trim				$ 277.64
7	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.80
8	W10185266		Bumper, Grate   (Replaces: 8286695)			Immediately	$ 13.92
9	W10261510		Bezel, Front				$ 49.60
10	W10250390		Knob, Griddle				$ 33.28
11	W10261512		Bezel, Rear		Appelez-nous	-
12	W10498407		Bracket, Spark Module				$ 71.07
13	WPW10256034		Cap, Burner (black (left Front))   (Replaces: W10256034)				$ 124.37
14	W10282659		Assembly, Orifice Holder (right Rear)				$ 36.45
15	W10256046		Spring, Electrode (left Front, Left Rear, Right Front)				$ 10.40
16	W10833887		Electrode, Burner   (Replaces: W10256047)			Immediately	$ 45.59
17	W10146042		Electrode, Burner (right Rear)				$ 17.77
18	W10352969		Cooktop (black (left))				$ 302.18
19	W11106799		Spreader, Flame (left Front)   (Replaces: W10495853)			Immediately	$ 91.87
20	W10261515		Bezel, Griddle		Appelez-nous	-
21	WPW10298119		Module, User Interface   (Replaces: W10298119)				$ 459.53
22	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.80
23	WPW10284668		Assembly, Console   (Replaces: W10284668)				$ 419.82
24	W11244176		Knob (left Front)   (Replaces: W10250389)				$ 70.53
25	WPW10475147		Module, Spark   (Replaces: W10475147)			Immediately	$ 346.50
26	8286863		Spring, Electrode (right Rear)				$ 69.23
27	7103P166-60		Nut				$ 16.70
28	W11177673		Knob (left Rear, Right Front, Right Rear)   (Replaces: W10250391)				$ 81.50
29	WPW10373929		Screw   (Replaces: W10373929)				$ 39.29
30	W10116151		Housing, Indicator Light				$ 71.24
31	W10116115		Lens, Indicator Light				$ 7.07
32	W10291193		Trim, L-strip		Appelez-nous	-
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
34	W10250476		Bracket, User Interface		Appelez-nous	-
35	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 316.77
36	W10791075		Orifice (5k) (right Rear)   (Replaces: W10282663)				$ 93.31
37	8286930		Gasket, Orifice (right Rear)				$ 86.16
38	W10625221		Module, Griddle				$ 1,311.59
39	W10130760		Bracket, Moving Console (left)				$ 68.35
40	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.80
41	W10319835		Sensor, Griddle				$ 215.35
42	WPW10068250		Screw   (Replaces: 7101P074-60)				$ 3.84
43	WPW10116104		Keypad   (Replaces: W10116104)			Immediately	$ 335.26
13A	WPW10256032		Cap, Burner (black (left Rear & Right Front))   (Replaces: W10256032)			Immediately	$ 79.54
13B	WPW10364463		Cap, Burner (black (right Rear))   (Replaces: W10364463)			Immediately	$ 50.27
18A	W10352968		Cooktop (black (right))				$ 303.53
19A	WPW10256027		Spreader, Flame (left Rear & Right Front)   (Replaces: W10256027)			Immediately	$ 90.92
19B	WPW10282515		Spreader, Flame (right Rear)   (Replaces: W10282515)			Immediately	$ 134.88
1A	W10403296		Sheet, Tech (french)		Appelez-nous	-
1B	W10399386		Use & Care Guide		Appelez-nous	-
1C	W10526083		Instructions, Installation		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2A	W10819958		Orifice (1.2k) (left Front, Low)   (Replaces: W10256132)				$ 87.99
2B	W11051480		Orifice (15k) (left Rear & Right Front)   (Replaces: W10364221)				$ 81.62
39A	W10130759		Bracket, Moving Console (right)				$ 68.35
NI	W10780278		Harness, Door Latch   (Replaces: W10345322)			Immediately	$ 86.28
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	W10327536		Harness, Wire (switch, F/s)				$ 162.99
NI	WP112432		Nut, Hex   (Replaces: 112432)				$ 7.77
NI	4450800		Screw, Grounding				$ 12.12
NI	9757778		Bushing, Snap Split				$ 87.87
NI	W10177363		Grommet, Flexible 60mm		Appelez-nous	-
NI	W10116182		Harness, Griddle		Appelez-nous	-
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	8019P013-60		Clip, Wire Lock				$ 14.13
NI	W10766100		Kit, Lp Conversion		Appelez-nous	-
NI	W10856625		Reducer, Stem   (Replaces: W10340850)				$ 170.31
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 53.89
NI	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10494088		Harness, Wire (communication)			Immediately	$ 68.01
NI	W10338986		Harness, Wiring (main)				$ 301.53
NI	W10363280		Harness, Ignition				$ 80.70
NI	W10726866		Connector, Ribbon				$ 75.49

    View Diagram in Separate Window       Print Part List
