SELECT A DIAGRAM

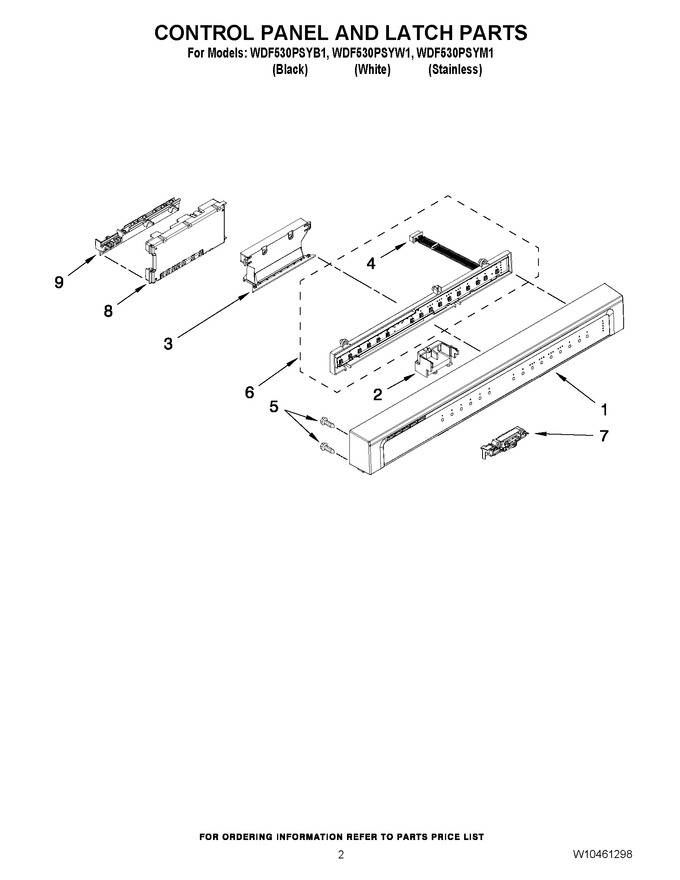

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10350425		Console Asm. (includes 5, 6 & 10) (black)   (Replaces: W10350421)				$ 287.92
1	W10350426		Console Asm. (includes 5, 6 & 10) (white)   (Replaces: W10350422)				$ 101.35
1	W10350428		Console Asm. (includes 5, 6 & 10) (stainless)   (Replaces: W10350424)				$ 370.18
2	W10783730		Box, Connector   (Replaces: W10401190)				$ 31.41
3	WPW10321839		Handle, Pocket   (Replaces: W10321839)			Immediately	$ 149.02
4	W10327246		Wire, Jumper				$ 67.01
5	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 8.02
6	WPW10629166		Ui Housing Assy   (Replaces: W10440700)			Immediately	$ 315.65
7	W10619006		Latch, Assy   (Replaces: W10370003)			Immediately	$ 39.09
8	W10473200		Control, Electronic   (Replaces: W10352586)				$ 283.77
9	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 30.56

    View Diagram in Separate Window       Print Part List
