View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

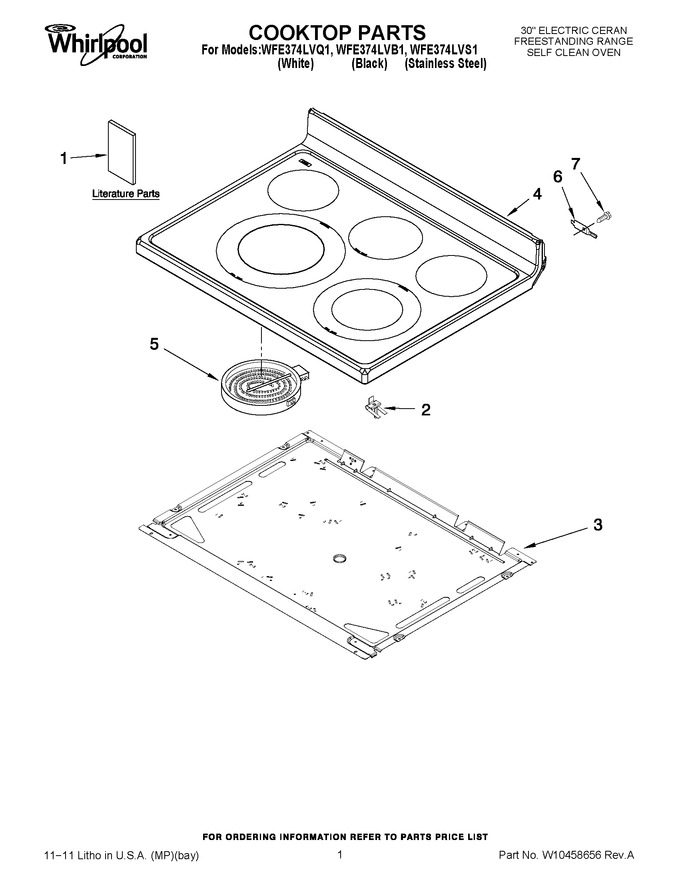

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10252706 | Instructions, Installation |
|
- | |||||
| 1 | 9757142 | Template,anti-tip (english/spanish) |
|
- | |||||
| 1 | 9757143 | Template,anti-tip (english/french) |
|
- | |||||
| 1 | W10200357 | Template, Anti-tip (owners Manual) |
|
- | |||||
| 1 | W10432691 | Template, Anti-tip (tech Sheet) |
|
- | |||||
| 1 | 9762761 | Template, Anti-tip (safer Cooking Tips) |
|
- | |||||
| 2 | WPW10225448 | Spring, Locator (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W10170526 | Pan, Radiant |
|
$ 257.69 | |||||
| 4 | W10162029 | Cooktop (white) |
|
- | |||||
| 4 | W10162030 | Cooktop (black/stainless) |
|
- | |||||
| 5 | W11517959 | Element, Surface (3000/1400w - Rf/lf) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 5 | WP9762851 | Element, Surface (warm Zone (120v)) (Replaces: 9762851) |
|
Immediately | $ 276.53 | ||||
| 5 | W10823711 | Element, Surface (1200 W - Lr,rr) (Replaces: 8523698) |
|
Immediately | $ 204.39 | ||||
| 6 | WP3195060 | Hinge, Pin/cooktop (Replaces: 3195060) |
|
Immediately | $ 12.55 | ||||
| 7 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 |
