SELECT A DIAGRAM

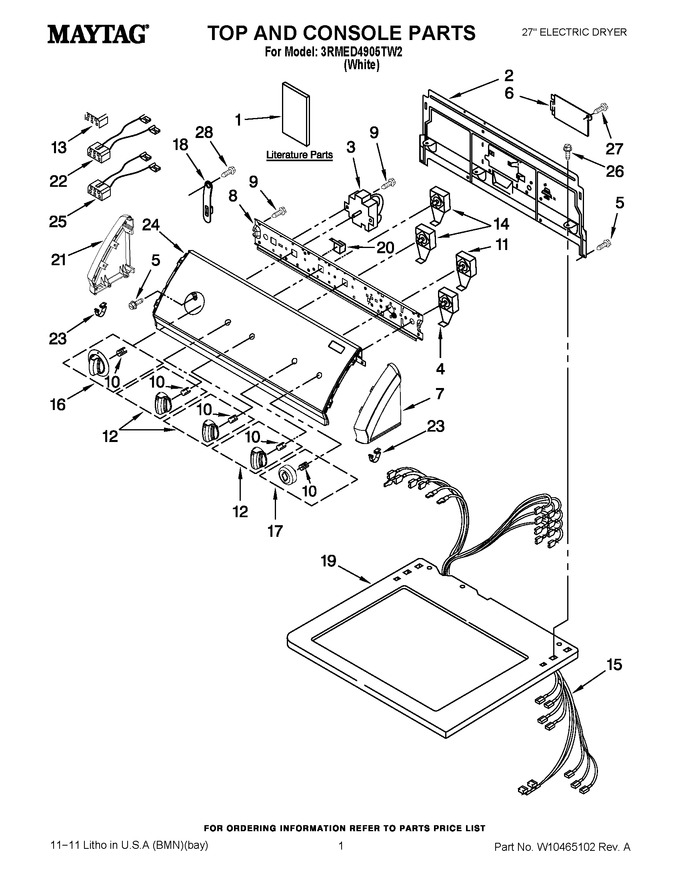

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10396183		Wiring Diagram		Appelez-nous	-
1	W10131549		Instructions, Installation		Appelez-nous	-
1	W10127856		Guide, Use & Care		Appelez-nous	-
2	W10121161		Panel, Rear Console		Appelez-nous	-
3	WPW10116281		Timer   (Replaces: W10116281)				$ 326.21
4	W10238463		Switch, Push-to-start		Appelez-nous	-
5	WP488729		Screw, 8-18 X 3/8   (Replaces: 3390647)			Immediately	$ 8.28
6	W10601020		Cover, Terminal Block   (Replaces: W10096918)		Appelez-nous	-
7	W10128463		Cap, End (r.h.)		Appelez-nous	-
8	8559504		Bracket, Control		Appelez-nous	-
9	3400859		Screw, 8-18 X 5/16   (Replaces: 8533951)				$ 13.88
10	WP8536939		Spring, Clip   (Replaces: 8536939)			Immediately	$ 8.20
11	W11235848		Switch, (end Of Cycle)   (Replaces: W10168168)		Appelez-nous	-
12	WPW10043430		Knob, Control   (Replaces: W10043430)				$ 64.73
13	W10134274		Jumper, (temp. Switch)		Appelez-nous	-
14	W10168170		Switch-rotary				$ 206.68
15	W10386315		Harness, Wiring		Appelez-nous	-
16	WPW10043460		Timer Knob Assembly   (Replaces: W10043460)				$ 222.06
17	W10043480		Knob, Push-to-start				$ 104.97
18	WP8568314		Strap, Console   (Replaces: 8318255)				$ 8.17
19	8559781		Top		Appelez-nous	-
20	W10135122		Mini-buzzer		Appelez-nous	-
21	W10128464		Cap, End (l.h.)		Appelez-nous	-
22	W10134277		Wire, Jumper (gaurd/on-off)		Appelez-nous	-
23	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
24	W10123194		Panel, Control		Appelez-nous	-
25	W10135126		Wire, Jumper Assembly		Appelez-nous	-
26	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
27	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
28	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25

    View Diagram in Separate Window       Print Part List
