SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Blower Assembly Parts

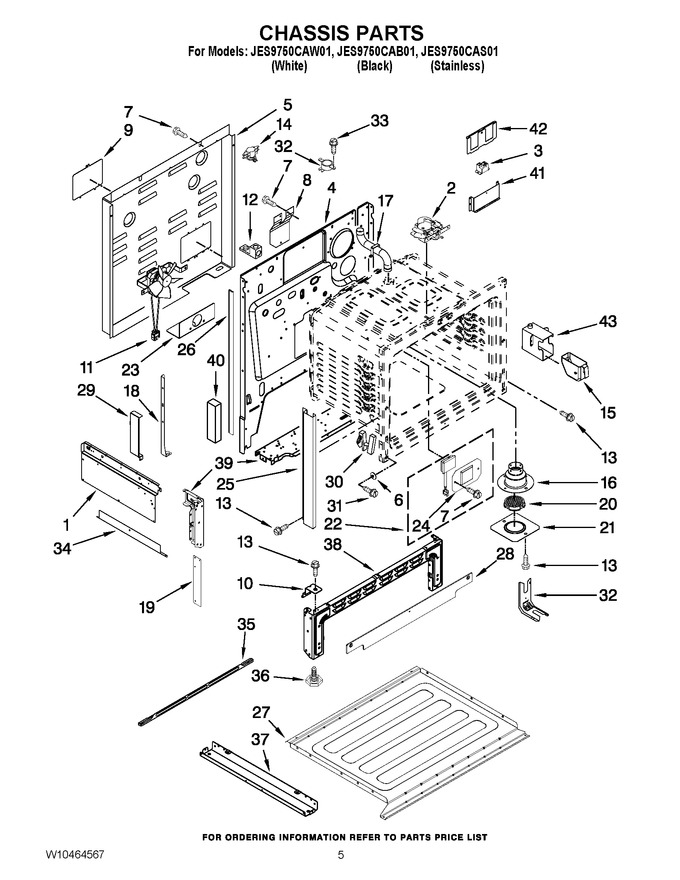

04 - Chassis Parts


05 - Internal Oven Parts


06 - Drawer Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2618F202-51		Panel, Shield (left)		Appelez-nous	-
1	2618F206-51		Panel, Shield (right)				$ 135.68
2	WPW10274035		Latch/switch Asm.   (Replaces: W10274035)				$ 336.07
3	WP8566493		Relay, Power   (Replaces: W10182892)				$ 90.35
4	3804F313-51		Main, Back		Appelez-nous	-
5	4005F810-51		Cover, Wire Rear				$ 248.98
6	W10857933		Spacer, Side Pnl   (Replaces: 8004P024-60)				$ 7.86
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
8	7003P101-60		Insulator, Cord				$ 15.60
9	4005F612-51		Panel, Access				$ 46.13
10	3807F615-51		Support, Oven (bottom)		Appelez-nous	-
11	WPW10586440		Fan, Cooling   (Replaces: W10317679)				$ 318.60
12	WPW10281322		Block, Bare Wire   (Replaces: 7401P157-60)				$ 8.45
13	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
14	WP7450P034-60		Thermostat, Hi-limit   (Replaces: 7450P034-60)				$ 217.58
15	8312P190-60		Cup, Grease				$ 33.51
16	8026P096-60		Tube, Vent Lower		Appelez-nous	-
17	8026P094-60		Tube, Vent Upper		Appelez-nous	-
18	3807F732-51		Support, Oven Rear		Appelez-nous	-
19	3801F929-51		Brkt., Side Panel		Appelez-nous	-
20	8034P008-60		Smoke Eliminator				$ 25.43
21	3605F344-45		Plate, Smoke Elm.		Appelez-nous	-
22	7407P180-60		Light Assy Halogen		Appelez-nous	-
23	3801F911-51		Bracket, Power Supply				$ 9.09
24	7506P406-60		Tube, Drain				$ 137.82
25	3608F138-70		Trim, Side (black)				$ 66.28
25	3608F138-71		Trim, Side (white)				$ 34.76
26	W10183566		Guard, Edge		Appelez-nous	-
27	3804F312-51		Retainer, Insul. (bottom)		Appelez-nous	-
28	7713P054-60		Trim, Front Frame		Appelez-nous	-
29	3604F336-51		Shield, Heat		Appelez-nous	-
30	74011475		Hinge   (Replaces: 7106P143-60)			Immediately	$ 130.52
31	WP4159193		Screw, Hinge   (Replaces: 7101P282-60)				$ 4.77
32	WP3801F656-51		Bracket,anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.21
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
34	3826F064-51		Extension, Shield		Appelez-nous	-
35	3807F754-45		Support, Element				$ 8.34
36	WP74010805		Leg, Leveling   (Replaces: 7101P660-60)				$ 7.19
37	4020W035-80		Pedestal, Bottom				$ 112.82
38	W10271711		Base, Pedestal				$ 144.40
39	4020F033-80		Pedestal, Rear (left)				$ 33.86
39	4020F032-80		Pedestal, Rear (right)				$ 33.39
40	7002P304-60		Insulation, Heat Shield		Appelez-nous	-
41	8405P063-60		Brkt, Relay Lower		Appelez-nous	-
42	8405P046-60		Brkt, Relay Upper		Appelez-nous	-
43	8312P191-60		Housing, Grease Cup				$ 45.19
NI	7002P466-60		Insulation, Wrap		Appelez-nous	-
NI	7002P468-60		Insulation, Back				$ 92.98
NI	7002P467-60		Insulation, Oven Bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
