View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts

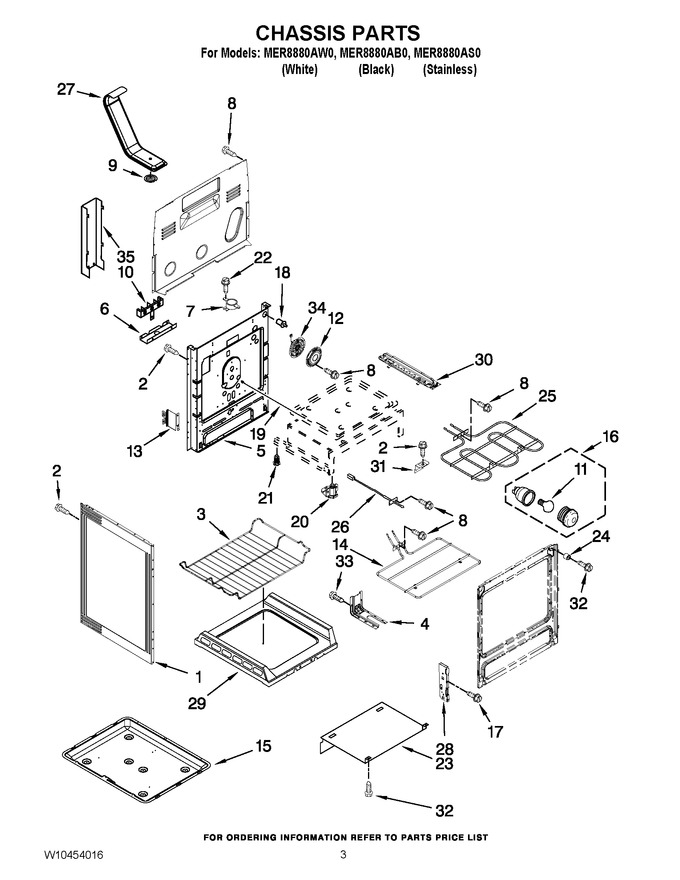

03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11730303 | Panel, Side (black) (Replaces: W10322770) |
|
Immediately | $ 178.50 | ||||
| 1 | WPW10575396 | Panel, Side (white) (Replaces: W10322769) |
|
$ 148.71 | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 3 | W11256463 | Rack, Bottom (Replaces: W10289145) |
|
Immediately | $ 132.50 | ||||
| 4 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 5 | W10273169 | Main Back |
|
- | |||||
| 6 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 7 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 8 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 9 | 9761301 | Screen, Catalyst |
|
$ 147.90 | |||||
| 10 | WPW10245259 | Block, Terminal (Replaces: W10245259) |
|
Immediately | $ 35.17 | ||||
| 11 | 8009 | Bulb, Oven (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 12 | WPW10346154 | Cover, Convection (Replaces: W10346154) |
|
Immediately | $ 77.67 | ||||
| 13 | W10273002 | Bracket, Support |
|
$ 76.34 | |||||
| 14 | W10779716 | Element, Bake 3600w (Replaces: W10289097) |
|
Immediately | $ 61.45 | ||||
| 15 | W11379357 | Pan, Bake (Replaces: W10346147) |
|
Immediately | $ 82.86 | ||||
| 16 | W11594027 | Assembly, Light (Replaces: 3196701) |
|
Immediately | $ 87.01 | ||||
| 17 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 18 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 144.44 | ||||
| 19 | W11370463 | Rod, Rear Door (Replaces: W10273192) |
|
Immediately | $ 66.87 | ||||
| 20 | WPW10341186 | Assembly, Foot (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 21 | WPW10058460 | Foot, Rear (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 22 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 23 | W10726740 | Shield, Heat (Replaces: W10289099) |
|
$ 145.01 | |||||
| 24 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 56.06 | ||||
| 25 | WPW10535127 | Element, Broil 3600w (Replaces: W10211455) |
|
$ 224.44 | |||||
| 26 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 27 | WPW10134285 | Vent, Oven (Replaces: W10134285) |
|
Immediately | $ 263.00 | ||||
| 28 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 29 | W10789865 | Bottom, Oven (Replaces: W10289079) |
|
$ 221.22 | |||||
| 30 | W11818353 | Rail, Base (left Hand) (Replaces: W10390007) |
|
$ 62.66 | |||||
| 30 | W11818353 | Rail, Base (right Hand) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 31 | W10035900 | Support, Oven Bottom |
|
$ 14.36 | |||||
| 32 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 33 | WP7101P485-60 | Screw, Anti-tip (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 34 | W11043837 | Fan, Convection (Replaces: W10389553) |
|
Immediately | $ 297.27 | ||||
| 35 | WPW10326122 | Cover, Terminal Block (Replaces: W10326122) |
|
$ 139.60 | |||||
| NI | WPW10194393 | Insulation, Wrap (Replaces: W10194393) |
|
$ 129.15 | |||||
| NI | WPW10225524 | Insulation, Back (Replaces: W10225524) |
|
$ 114.68 | |||||
| NI | WPW10225523 | Insulation, Bottom (Replaces: W10225523) |
|
$ 120.25 | |||||
| NI | WPW10281322 | Block, Bare Wire Adapter Kit (Replaces: W10281322) |
|
$ 8.87 | |||||
| NI | 4820F015-59 | Strap, Insulation |
|
$ 9.79 |
