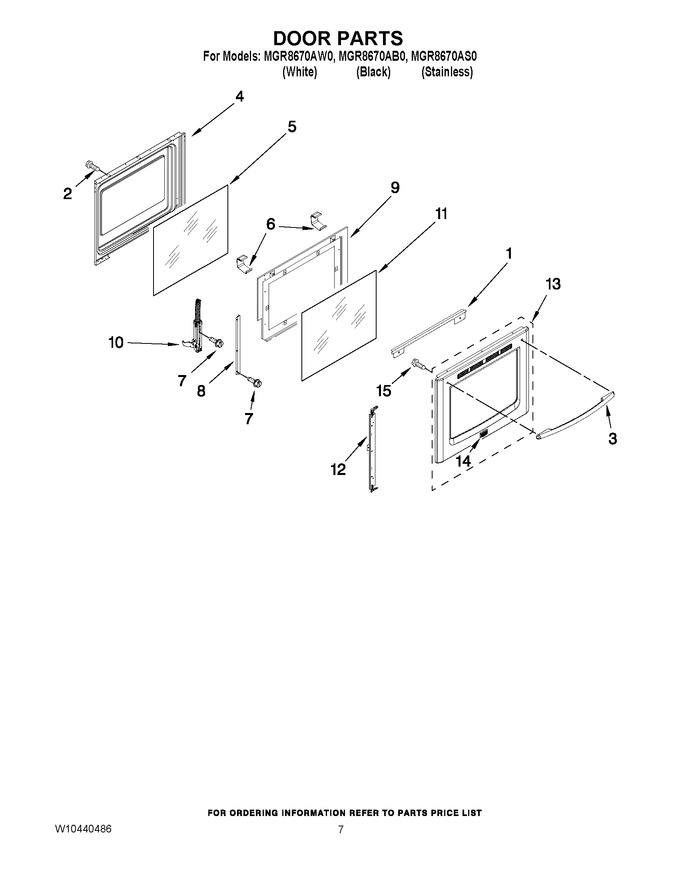

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10330075 | Trim, Vent |
|
$ 71.78 | |||||
| 2 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 8.20 | ||||
| 3 | WPW10161708 | Handle, Door (stainless) (Replaces: W10161708) |
|
$ 373.01 | |||||
| 3 | WPW10171747 | Handle, Door (white) (Replaces: W10171747) |
|
$ 296.11 | |||||
| 3 | WPW10171748 | Handle, Door (black) (Replaces: W10171748) |
|
$ 290.60 | |||||
| 4 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 331.51 | ||||
| 5 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 252.42 | |||||
| 6 | W10137382 | Clip, Glass |
|
Immediately | $ 48.42 | ||||
| 7 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 8 | W10294852 | Bracket, Glass |
|
$ 144.19 | |||||
| 9 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 237.04 | ||||
| 10 | WPW10440013 | Hinge, Active Door (Replaces: W10388635) |
|
Immediately | $ 63.80 | ||||
| 11 | W10316819 | Glass, Outer |
|
- | |||||
| 12 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 133.75 | |||||
| 13 | WPW10655838 | Skin, Door (stainless) (Replaces: W10325668) |
|
Immediately | $ 373.36 | ||||
| 13 | W10325666 | Skin, Door (black) |
|
- | |||||
| 13 | W10325665 | Skin, Door (white) |
|
- | |||||
| 14 | W10429490 | Badge |
|
- | |||||
| 15 | WPW10241367 | Screw (Replaces: W10241367) |
|
$ 6.27 |
